Electrical Measurement & Protection Products

Radix Electrical Measurement & Protection Products help industries monitor, measure, control and protect electrical systems with high accuracy and long-term reliability. Designed for industrial, commercial and infrastructure applications, Radix products provide dependable performance in demanding operating environments.

The Radix portfolio includes Multifunction Meters, Energy Meters, Digital Panel Meters, Protection Relays and Timers. Whether the requirement is power monitoring, energy management, electrical indication, equipment protection or timing control, Radix offers a comprehensive range of solutions engineered for modern electrical panels and automation systems.

All products are designed and manufactured at Radix's ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018 certified manufacturing facility in Navi Mumbai, India. With decades of experience in electrical instrumentation, Radix continues to deliver trusted solutions for panel builders, OEMs, system integrators and end users across various industries.

Multifunction Meters

Radix Multifunction Meters combine advanced electrical measurement, power monitoring and energy management capabilities in a single compact instrument. Designed for industrial power distribution, commercial buildings and infrastructure projects,

Available with customisable multicolour LED displays (MLD605 Series) and graphical LCD displays (MLC645 Series), Radix Multifunction Meters deliver excellent readability together with a graphical load current bar graph for instant load indication. Intuitive soft-key navigation, user-programmable display scrolling and password-protected configuration ensure simple operation and secure access.

Key Features

1. Comprehensive True RMS electrical measurement of Voltage, Current, Frequency, Power Factor, Active Power (W), Reactive Power (VAr), Apparent Power (VA), Active Energy (kWh), Reactive Energy (kVArh), Apparent Energy (kVAh), Import Energy and Export Energy.
2. Dual Source Energy Monitoring for independent monitoring and comparison of two power sources.
3. High-accuracy Three Phase Power Meter for industrial and commercial electrical systems.
4. Supports Power Quality Monitoring and Energy Monitoring applications.
5. Available with customisable multicolour LED or graphical LCD displays.
6. Graphical load current bar graph for quick load indication.
7. User-programmable display scrolling with intuitive soft-key operation.
8. Password-protected setup for secure configuration.
9. RS485 Modbus communication for PLC, SCADA, BMS and EMS integration.
10. Compact panel-mount enclosure with touch-safe barrier terminals and sealable terminal covers.

Available Series

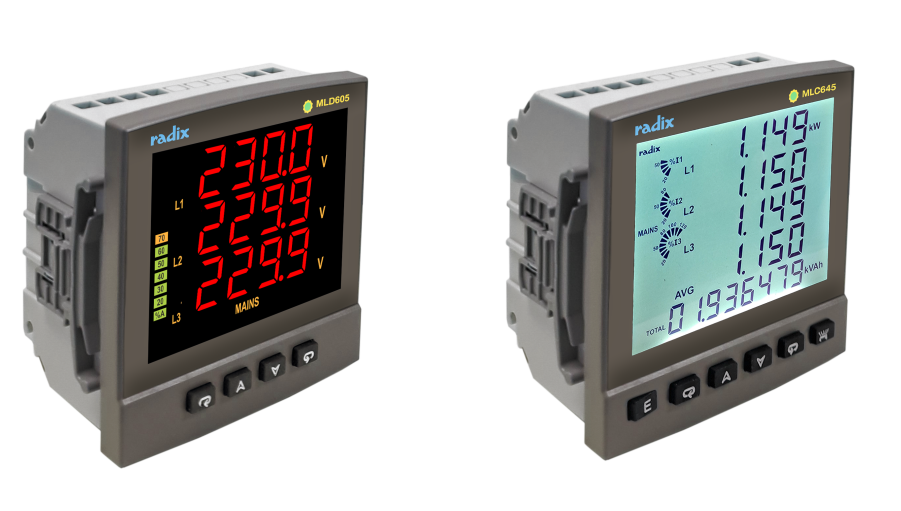

1. MLD605 Series – Digital Multifunction Meter with customisable multicolour LED display.
2. MLC645 Series – Digital Multifunction Meter with graphical LCD display.

Energy Meters

Radix Energy Meters are intelligent Digital Energy Meters designed primarily for accurate Energy Monitoring, energy analysis and power consumption management in industrial and commercial electrical systems. While offering the complete functionality of a Multifunction Meter, these meters are specifically optimised for monitoring cumulative energy values, making Active Energy (kWh), Reactive Energy (kVArh), Apparent Energy (kVAh), Import Energy and Export Energy the primary displayed parameters for quick and convenient energy monitoring.

In addition to comprehensive energy measurement, Radix Energy Meters accurately measure Voltage, Current, Frequency, Power Factor, Active Power (W), Reactive Power (VAr), Apparent Power (VA) and other essential electrical parameters.

The EMX605 Series features a large single-row 6-digit display for clear and easy monitoring of cumulative energy values, while the EMX615 Series offers a dual-row 6-digit display for simultaneous and independent indication of Mains Energy and DG Energy.

Key Features

1. Primary display dedicated to Active Energy (kWh), Reactive Energy (kVArh), Apparent Energy (kVAh), Import Energy and Export Energy for quick energy monitoring.
2. Comprehensive electrical measurement including Voltage, Current, Frequency, Power Factor, Active Power (W), Reactive Power (VAr) and Apparent Power (VA)
3. Large 6-digit Energy Display for excellent readability of cumulative energy values.
4. Separate non-volatile memory for Energy, Load Hours and ON Hours, preserving historical records even after reset.
5. Dual Source Energy Monitoring with independent Mains and DG energy storage (EMX615 Series).
6. Class 1.0 accuracy with True RMS measurement conforming to IEC 62052-11.
7. RS485 Modbus communication for PLC, SCADA, BMS and EMS integration.
8. User-programmable display scrolling, intuitive soft-key operation and password-protected configuration.
9. Compact panel-mount design with touch-safe barrier terminals and sealable terminal covers.

Available Series

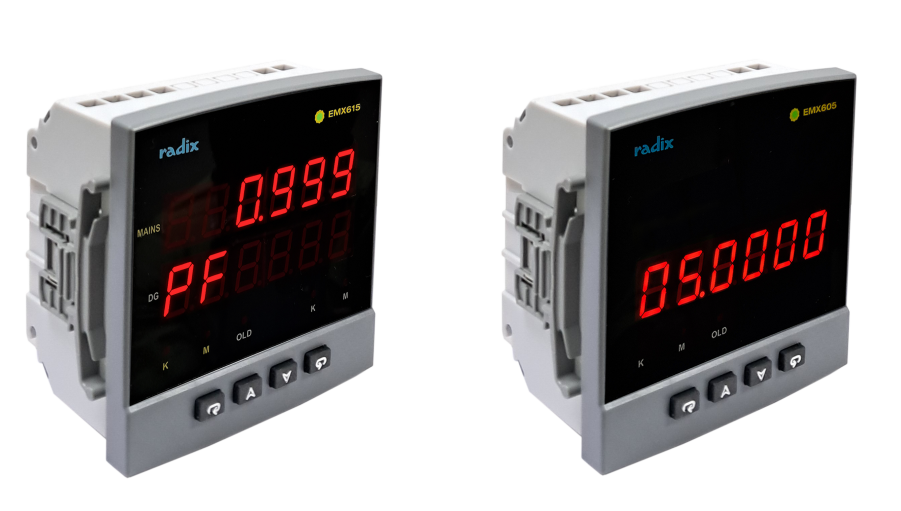

1. EMX605 Series – Digital Energy Meter with large single-row 6-digit Energy display.
2. EMX615 Series – Dual Source Digital Energy Meter with dual-row 6-digit display for independent Mains and DG Energy monitoring.

Explore the Radix Energy Meter range to compare display options, energy monitoring features and communication capabilities, and select the ideal solution for accurate energy measurement, power monitoring and long-term energy management.

Digital Panel Meters

Radix Digital Panel Meters provide reliable and accurate indication of essential electrical parameters for industrial and commercial power systems. Designed for continuous monitoring of Voltage, Current, Frequency and Voltage-Current-Frequency (VAF), these Electrical Panel Meters deliver dependable performance with excellent readability and simple operation.

The Radix range includes Digital Voltmeters, Digital Ammeters, Digital Frequency Meters and Digital VAF Meters, offering the right solution for both Single Phase and Three Phase electrical systems. Available in multiple industry-standard panel sizes and display options, these compact Panel Mounted Digital Meters are ideal for new installations as well as retrofit replacement of conventional analogue or digital meters.

User-programmable CT/PT ratio settings and a compact panel-mount design to simplify installation across a wide range of industrial and commercial applications.

Key Features

1. Accurate monitoring of Voltage, Current, Frequency and Voltage-Current-Frequency (VAF).
2. Available as Digital Voltmeters, Digital Ammeters, Digital Frequency Meters and Digital VAF Meters.
3. Suitable for Single Phase and Three Phase electrical systems.
4. Available in 96 × 96 mm, 72 × 72 mm and 48 × 96 mm industry-standard panel sizes.
5. Multiple display options to suit different panel and application requirements.
6. User-programmable CT Ratio and PT Ratio for flexible installation.
7. Load Hours and ON Hours monitoring for equipment utilisation and preventive maintenance.
8. RPM Measurement with programmable motor poles on selected Three Phase models.
9. Optional RS485 Modbus communication for PLC, SCADA, BMS and automation system integration.
10. High measurement accuracy with clear and easy-to-read digital display.
11. Compact panel-mount design for new installations and retrofit applications.
12. Reliable operation with simple installation and low maintenance.

Available Series

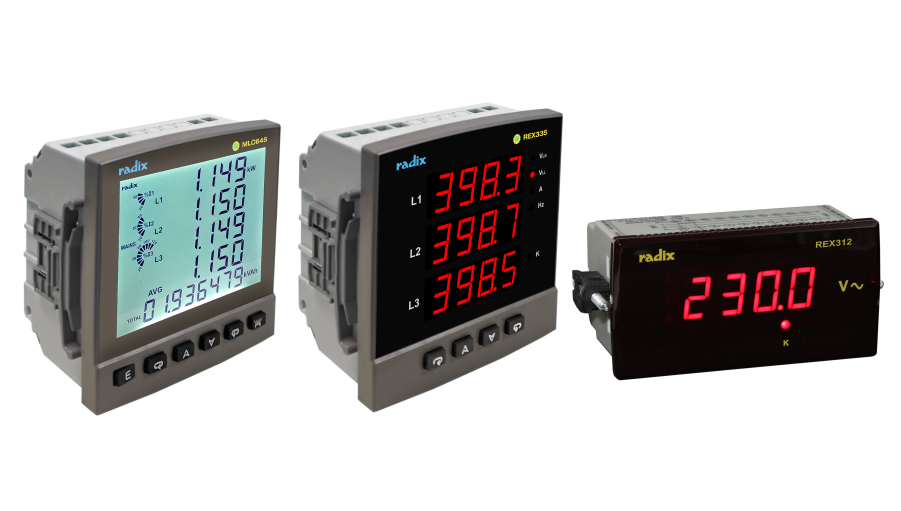

REX Series – Digital Panel Meter range with multiple display formats and application-specific models.

Explore the Radix Digital Panel Meter range to compare Digital Voltmeters, Digital Ammeters, Digital Frequency Meters and Digital VAF Meters, and select the ideal solution for accurate electrical measurement and industrial panel applications.

Economy Series VA Meters

Radix Economy Series VA Meters are compact Digital Voltage and Current Meters specially designed as a cost-effective replacement for conventional analogue panel meters. Developed primarily for agricultural pump control panels, irrigation systems and motor starter panels, these VA Meters provide reliable monitoring of supply voltage and load current while maintaining the simplicity of traditional analogue instruments.

The Economy Series directly measures Voltage (230–500 VAC) and Current (1–30 A) without requiring external Potential Transformers (PTs) or Current Transformers (CTs). Their plug-and-play design eliminates programming and complex configuration, making installation quick and simple for OEMs, panel builders and field technicians. The compact panel-mount design and maintenance-free operation make these meters an ideal choice for new installations as well as upgrading existing analogue voltmeters and ammeters.

Key Features

1. Direct measurement of Voltage (230–500 VAC) and Current (1–30 A).
2. Self-powered operation with no separate auxiliary supply required.
3. No external Current Transformer (CT) required for current measurement.
4. No external Potential Transformer (PT/VT) required within the specified voltage range.
5. Ideal replacement for conventional analogue Voltmeters and Ammeters.
6. Designed for agricultural pump panels, DOL starters and Star-Delta starters.
7. Factory-configured plug-and-play operation with no programming required.
8. Clear digital indication for improved readability and measurement accuracy.
9. Compact panel-mount design for easy installation.
10. Maintenance-free operation with long service life.
11. Cost-effective solution for agricultural and industrial control panels.

Available Series

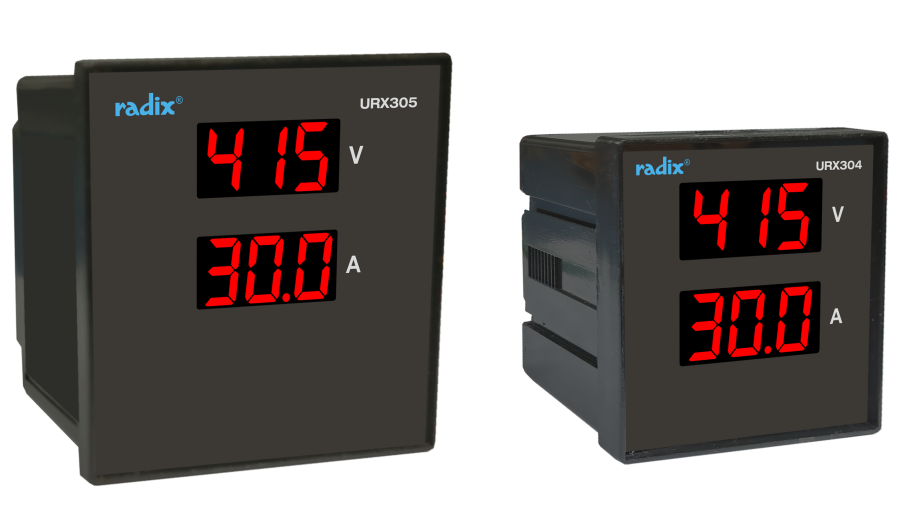

1. URX304 Series – 72 × 72 mm Self-Powered Economy Digital VA Meter.
2. URX305 Series – 96 × 96 mm Self-Powered Economy Digital VA Meter.

Typical Applications

1. Agricultural Pump Control Panels
2. Irrigation Control Panels
3. Borewell Pump Panels
4. DOL Motor Starters
5. Star-Delta Motor Starters
6. Motor Control Centres (MCC)
7. Small Distribution Panels
8. OEM Control Panels
9. Industrial Motor Panels
10. Water Supply and Pumping Systems

Protection Relays

Radix Protection Relays are intelligent Voltage Monitoring Relays designed to protect electrical equipment from abnormal supply conditions. Suitable for industrial and commercial applications, these relays help safeguard motors, generators, transformers, pumps, compressors, HVAC systems, switchgear and control panels, improving system reliability while reducing downtime and maintenance costs.

The relay continuously monitors the incoming supply voltage and frequency, comparing them with user-defined or factory-set operating limits. Whenever an abnormal condition is detected, the relay changes its output state after the configured delay, disconnecting or preventing operation of the protected equipment. Once the supply returns within the permissible limits, the relay automatically restores operation after the programmed power-on delay, ensuring reliable protection without nuisance tripping.

Key Features

1. Continuous monitoring of electrical supply conditions.
2. Protection against Over Voltage, Under Voltage, Phase Failure, Phase Loss, Phase Sequence, Phase Asymmetry, Over Frequency and Under Frequency.
3. Available in Single Phase and Three Phase configurations.
4. Factory-set (V17F Series) and User-programmable (V17S Series) models.
5. Adjustable Trip Delay, Power-On Delay and programmable protection settings.
6. Built-in hysteresis for stable relay operation.
7. Compact 17.5 mm DIN-rail enclosure.
8. Tool-free adjustment knobs for quick configuration.
9. Optimised voltage burden for minimal loading.
10. High reliability for industrial automation and OEM equipment applications.

Available Series

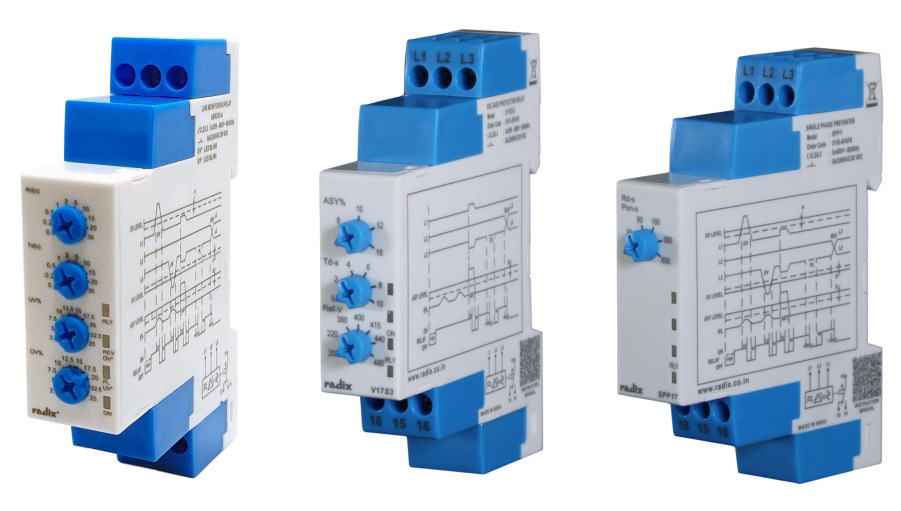

1. V17S1 Series – Single Phase Voltage Protection Relays.
2. V17F3 Series – Three Phase Voltage Protection Relays with factory-set settings.
3. V17S3 Series – Three Phase Voltage Protection Relays with user-programmable settings.
4. SPP Series – Single Phase Preventor

Timer Series

Radix Timer Series offers a comprehensive range of Industrial Analog Timers designed to provide accurate timing, sequencing and control for industrial automation, machine control and electrical control panels. Suitable for OEM equipment, process industries, motor control and building automation, these timers help improve process efficiency, equipment reliability and automation performance.

The timer starts its timing cycle when the supply or trigger input is applied and changes the relay output after the preset time has elapsed. Depending on the timer function, the relay can provide ON Delay, Star Delta motor changeover, Asymmetrical Cyclic operation or multiple programmable timing functions. This simple operating principle makes Radix Timers ideal for sequential machine operation, motor starting, repetitive switching and process control applications.

Key Features

1. Available as On Delay Timers, Star Delta Timers, Asymmetrical Cyclic Timers and Multi Function Timers.
2. Supports multiple timing functions including ON Delay, Star Delta Changeover, Asymmetrical Cyclic Timing and Multi Function Timing.
3. Wide timing ranges from 0.1 second up to 3 hours (model dependent).
4. Available with 230 VAC and Universal Power Supply (20–240 VAC / 12–240 VDC) models.
5. Compact 17.5 mm DIN-rail enclosure for space-saving installation.
6. Tool-free rotary potentiometer knobs for quick and easy setting adjustment.
7. Bright Power ON and Relay ON LED indications.
8. Rugged maintenance-free design for continuous industrial operation.
9. Suitable for new installations and retrofit applications.

Available Series

1. T17DT Series – Star Delta Timers for automatic motor starter changeover.
2. T17ON Series – ON Delay Timers for sequential switching and delayed operation.
3. T17CY Series – Asymmetrical Cyclic Timers with independent ON and OFF timing.
4. T17MF Series – Multi Function Timers supporting multiple timing modes within a single timer.

Why Choose Radix?

Thousands of customers trust Radix for Electrical Measurement & Protection Products designed for dependable operation in demanding applications.

Advantages of Choosing Radix

1. High accuracy measurement
2. True RMS technology
3. Compact space-saving designs
4. User-friendly operation
5. Reliable industrial performance
6. ISO-certified manufacturing
7. CE and RoHS compliant products
8. Strong technical support
9. Proven field reliability

Whether you require a Multifunction Meter, Energy Meter, Digital Panel Meter, Protection Relay or Timer, Radix offers trusted solutions to help improve electrical system monitoring, energy efficiency, equipment protection and operational performance.

Common Platform Advantages

Radix Electrical Measurement Products are designed on a common communication platform, simplifying system integration and reducing engineering effort for OEMs, panel builders and automation system integrators.

Key Benefits

1. Common Modbus Register Address Map across Multifunction Meters, Energy Meters and Digital Panel Meters.
2. Common communication protocol for faster PLC, SCADA and BMS integration.
3. Parameters not applicable to a particular model are simply left blank, eliminating the need for different software or register mapping.
4. Simplifies product upgrades without modifying PLC or SCADA programs.
5. Reduces engineering, commissioning and maintenance time.
6. Consistent parameter addressing across the Radix Electrical Measurement product range.
