GPS Master Slave Clocks

Radix GPS Master Slave Clocks provide highly accurate time synchronisation for industrial, commercial, and infrastructure applications. Using a time signal from GPS satellites, these clocks ensure precise and consistent time distribution across connected clocks and systems. Radix offers GPS Master Slave Clocks with the following connectivity options: RF Master-Slave Wireless Clocks, RS485 Modbus RTU Master-Slave Clocks, Ethernet NTP Clocks (Slave Clocks with or without a Master Clock), and Wi-Fi Master-Slave Clocks to suit different installation requirements.

Clocks are available in 4, 6, 10 and 12 digit, with 2.3” and 4” digit height, in wall-mount, flush-mount and flameproof enclosures. Parameters displayed can be time, and time plus date. 24-hour and 12-hour formats are available.

Designed for reliable operation and easy integration, Radix GPS Clocks support accurate time synchronisation across manufacturing facilities, hospitals, commercial buildings, educational institutions, airports and other critical environments.

What is a GPS Clock?

A GPS Clock is a time synchronisation system that receives an accurate UTC time signal from GPS satellites and distributes it to connected clocks and systems. GPS Clocks help organisations maintain consistent, accurate time across multiple locations, improving operational efficiency and reducing the need for manual time adjustments.

Working Principle of a GPS Clock

A GPS antenna, which will need to be placed in line of sight near a window, receives an accurate UTC time signal from GPS satellites. The GPS receiver transfers the information to the Radix GPS Master Clock for processing. The master clock then distributes the synchronised time to all the slave clocks across the facility using communication methods such as RF (radio frequency, which is wireless), RS485 Modbus RTU (cable connected), Ethernet NTP (cable connected), or Wi-Fi (wireless).

All the connected slave clocks receive the synchronised time and maintain uniform time display across the entire facility with minimal maintenance requirements. Except for Wi-Fi, the status of the slave clocks can be monitored and displayed by the master clock, and also logged in a UTILITY.

GPS Clocks - Connectivity Options

• RF Wireless Clocks

1. Wireless time synchronisation without extensive cabling.
2. Suitable for factories, campuses and large facilities.
3. Easy installation and future expansion.
4. Ideal where cable routing is difficult.
5. Strong signal allows use in layouts with obstructions and large distances.

Models

1. GMC201 (GPS - RF, RS485 Master Clock)
2. GMC203 (GPS / NTP - RF, RS485 Master Clock)

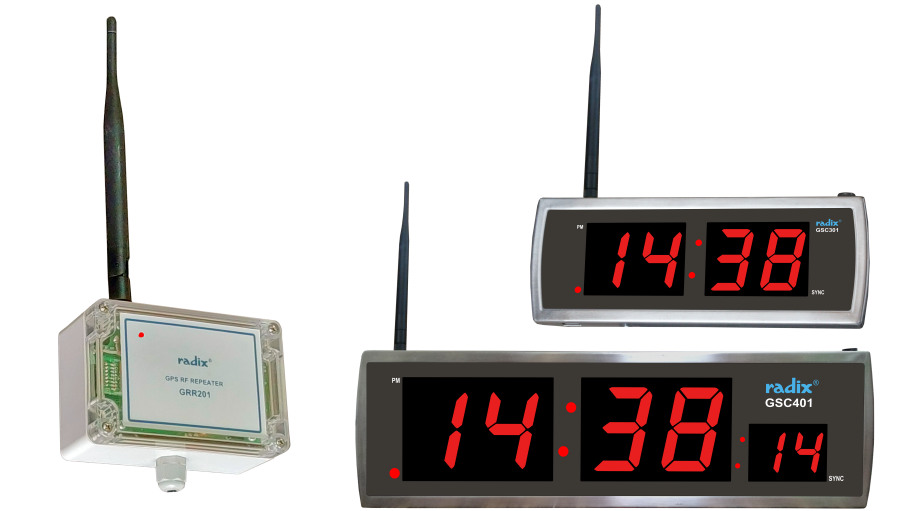

3. GRR201 (Blind RF Repeater)

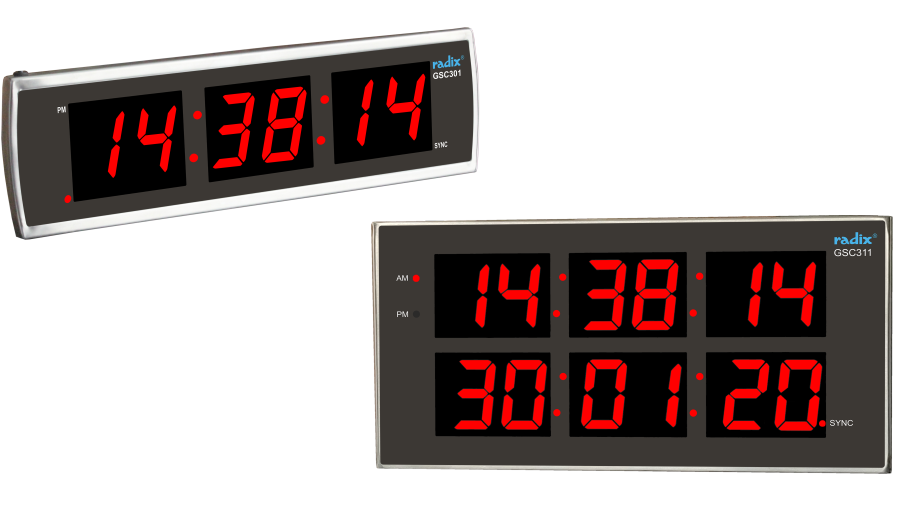

4. GSC301 ( 2.3" 4 Digit & 2.3” 6 Digit)
5. GSC401 (4" 4 Digit & 4” 4 Digit + 2.3” 2 Digit)
6. GSC311 (2.3" 12 Digit)

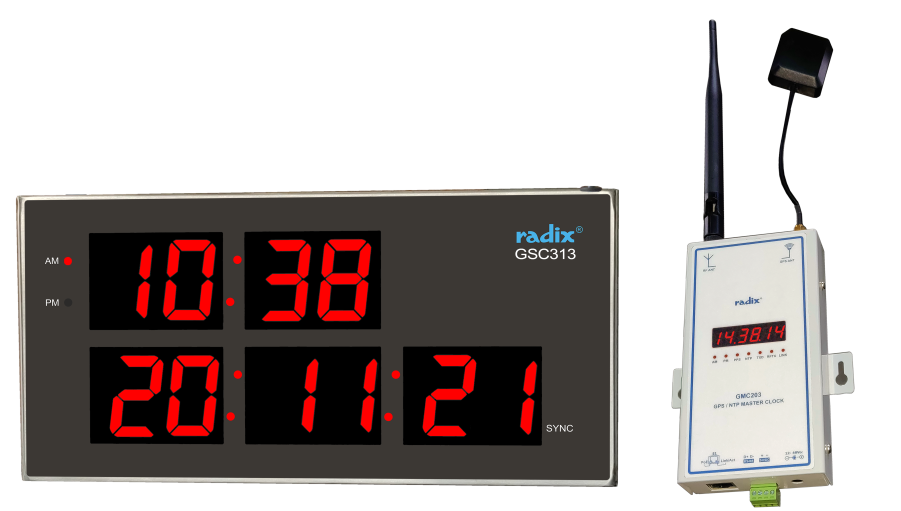

7. GSC313 ( 2.3" 10 Digit)

• RS485 Modbus RTU Clocks

1. Wired communication for industrial environments.
2. Useful where distances are large, and obstructions in plenty.
3. Suitable for automation and SCADA applications.
4. Reliable time synchronisation over RS485 networks.
5. Easy integration with existing systems.

Models

1. GMC201 (GPS - RF, RS485 Master Clock)
2. GMC203 (GPS / NTP - RF, RS485 Master Clock)
3. GSC301 ( 2.3" 4 Digit & 2.3” 6 Digit)
4. GSC401 (4" 4 Digit & 4” 4 Digit + 2.3” 2 Digit )
5. GSC311 (2.3" 12 Digit)
6. GSC313 ( 2.3" 10 Digit)

• Ethernet NTP Clocks

1. Network-based time synchronisation using Ethernet.
2. Minimal cabling costs when existing LAN cabling is used.
3. Can sync with master clock, user server or NTP servers (Internet based servers which provide an accurate time signal).
4. Suitable for offices, industrial plants and control rooms.
5. Supports centralised time distribution.
6. Simple integration with Ethernet infrastructure.

Models

1. GMC203 (GPS / NTP Master Clock, 0.362" LED display)
2. GSC301 ( 2.3" 4D & 2.3” 6D)
3. GSC401 (4" 4D & 4” 4D + 2.3” 2D)
4. GSC311 (2.3" 12D)
5. GSC313 ( 2.3" 10D)

• Wi-Fi Clocks

1. Wireless synchronisation using existing Wi-Fi network or independent Wi-Fi network
2. Reduces installation time and cabling costs
3. Suitable for educational institutions, hospitals and commercial buildings
4. Flexible deployment across multiple locations

Series

1. WMC201 (Wi-Fi GPS / NTP Master Clock, 0.362" LED display)

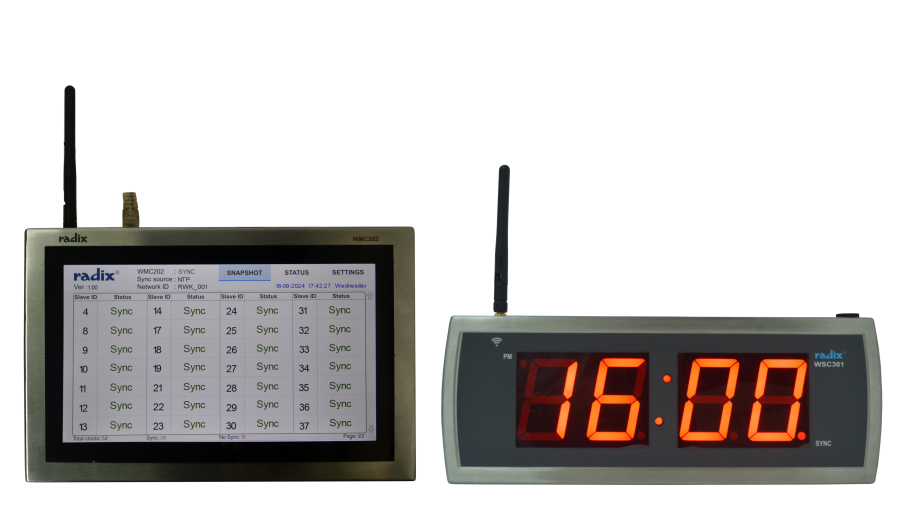

2. WMC202 (Wi-Fi GPS / NTP Master Clock, 10.1" TFT LCD display)
3. WSC301 ( 2.3" 4D & 2.3” 6D)
4. WSC401 (4" 4D & 4” 4D + 2.3” 2D)
5. WSC311 (2.3" 12D)
6. WSC313 ( 2.3" 10D)
7. WFR201 (Wi-Fi Repeater)

Types of Radix GPS Clock Solutions

GPS Master Clocks

1. Receive accurate GPS time
2. Synchronise multiple slave clocks
3. Suitable for centralised time distribution

GPS Slave Clock

1. Receive synchronised time from the master clock
2. Display uniform time throughout the facility
3. Available in multiple display formats

RF Wireless GPS Clocks

1. Wireless communication
2. Quick installation
3. Suitable for large industrial facilities

Ethernet NTP Clocks

1. Time synchronisation over Ethernet
2. Suitable for IT and industrial networks

Wi-Fi GPS Clocks

1. Wireless operation using Wi-Fi
2. Ideal where network cabling is limited

Benefits of Radix GPS Clocks

1. High-accuracy GPS time synchronisation
2. Uniform time display across multiple locations
3. Reliable wired and wireless communication options
4. Easy integration with existing infrastructure
5. Reduced manual time adjustment
6. Suitable for industrial and commercial applications
7. Supports expansion of existing clock systems
8. Designed for reliable long-term operation

Applications

1. Radix GPS Clocks are suitable for:
2. Pharma manufacturing facilities
3. Automotive industries
4. Auditorium
5. Hospitals
6. Office building
7. Malls
8. Government office
9. Manufacturing industries

Which GPS solution should I use?

Why Choose Radix GPS Clocks?

1. High-accuracy GPS time synchronisation
2. Reliable wired and wireless communication options
3. Multiple slave clock models for different applications
4. Easy installation and configuration
5. Industrial-grade construction
6. Suitable for indoor and demanding industrial environments
7. Flexible mounting options
8. Supports expansion of existing systems
9. Trusted Radix engineering and technical support
10. Designed for long-term dependable operation
