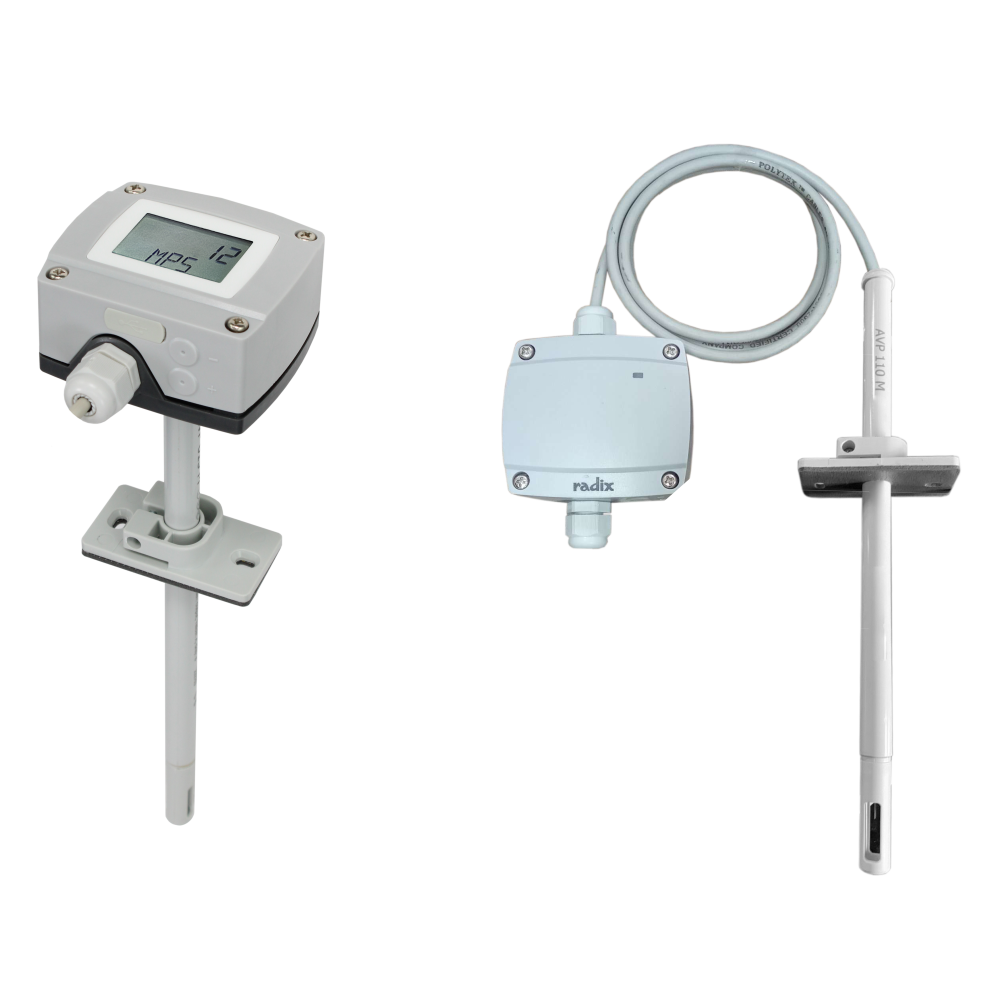

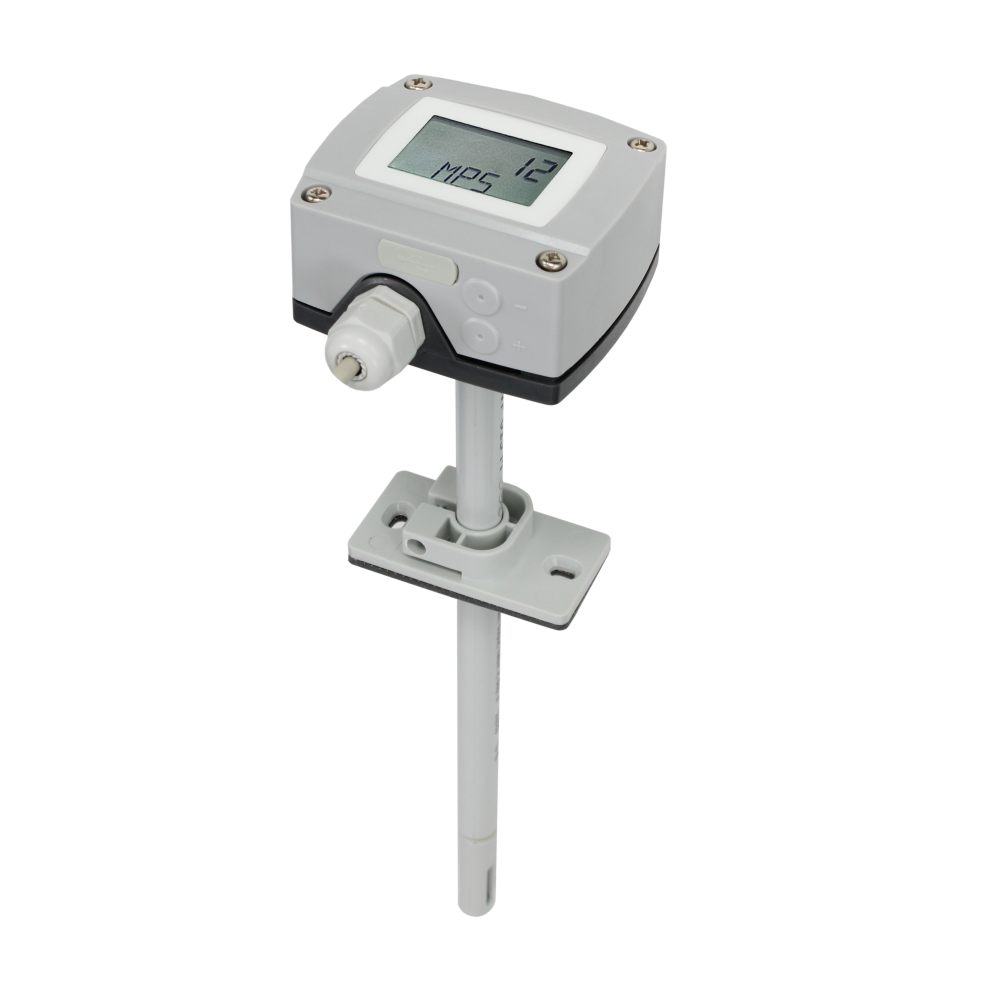

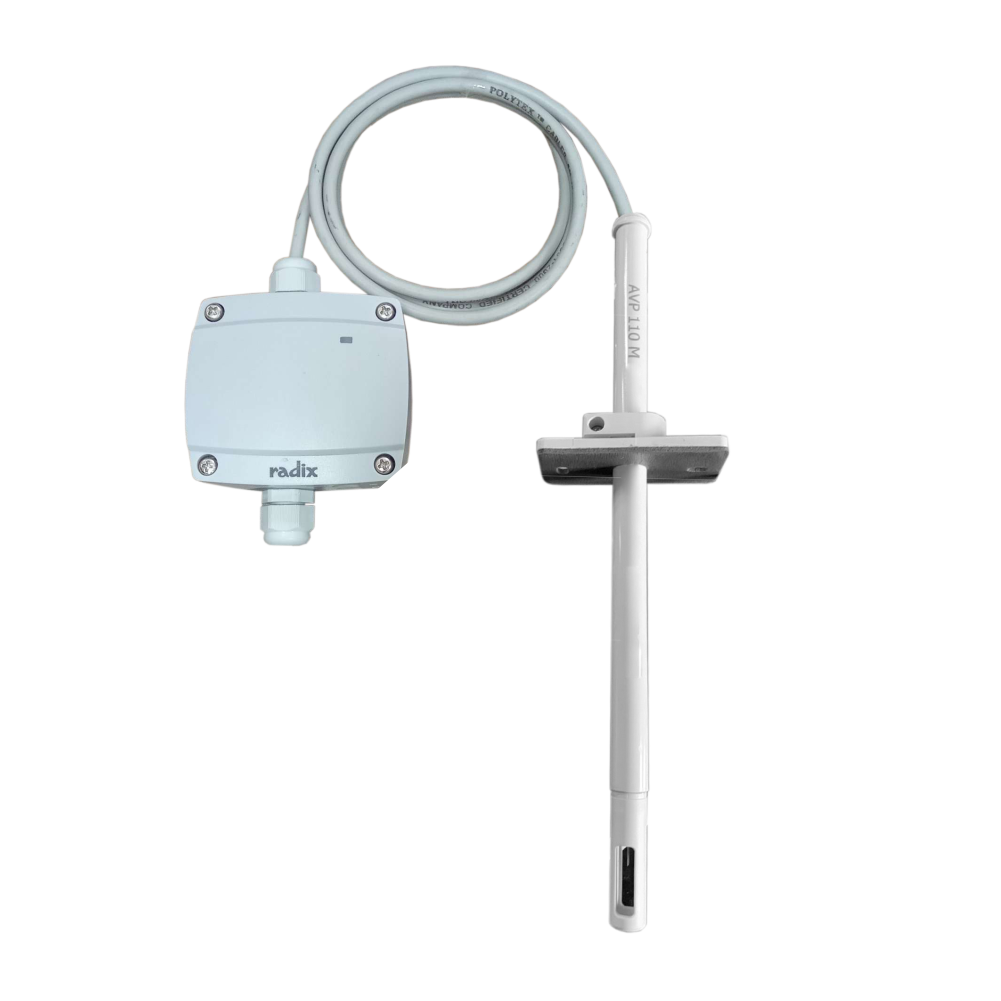

Air Velocity Transmitter

Model : AVX201

Similar Products

2 x 2-wire, 4-20 mA or 0-10 VDC outputs
Any output can be assigned to any parameter
Configuration and calibration using PC with Radix converter DCC501
Health/status LED
Calculated parameters : Dewpoint, Absolute humidity, Heat index, Enthalpy
Wall, Duct, Outside & Remote sensor versions
Convenient installation with 2-part housing with fixed back and removable electronics

2 x 2-wire, 4-20 mA or 0-10 VDC outputs with RTD resistance output option
Any or both outputs can be assigned to RH or T or Dewpoint or specific derived physical quantity
Configuration and calibration using PC with Radix converter DCC501
Health / status (Heartbeat) LED
Calculated parameters : Dewpoint, Absolute humidity, Heat index, Enthalpy

Analog voltage or 2-wire 4-20 mA output
Standard accuracy : ±0.5% of span ±2 Pa
High accuracy : 1% of span
Output can be assigned to DP or Air Velocity or Air Flow
Isolated RS485/MODBUS RTU output
IP65 protection
Dual row backlit LCD option
Health/status (Heartbeat) LED
Duct mount option available for static pressure measurement
Wall mount with rear side cable entry option available on request
Field selectable ranges
Convenient installation with 2-part housing with fixed back and removable electronics
Enclosure opens with 1/4 turn rotation screws
Provision for 1/2" conduit clamping (for US)

Laser scatter method sensor for Particulate Matter measurement
MEMS metal oxide semiconductor sensor to detect poor Air Quality
NDIR CO₂ sensor technology for superior stability in occupied and non-occupied buildings
Measurement : Particulate Matter, TVOC, RH/T, CO₂, CO, Air Quality Index
Isolated RS485 Modbus® RTU output
Dual relay output, 250 VAC-5A
Field Replaceable PM, CO₂, CO, TVOC, RH/T sensor
RH/T sensor also provides the parameters like : Dewpoint, Absolute humidity, Heat index, Enthalpy, Air density

Relative Humidity, Temperature & Differential Pressure measurement
Software programmable channel ranges, units & input types
3 programmable alarms with buzzer and output to operate external relays
Real Time Clock with battery back-up
Real Time Clock synchronized with server clock via Ethernet
Software calibration for all 3 channels
20-30 VDC supply
Advanced digital Relative Humidity & Temperature sensor technology
Guaranteed back-up against communication/SCADA/computer failures
Different 4 communication options are available RS485 Modbus® RTU, BACnet MS/TP, Ethernet Modbus® TCP, BACnet IP
Datalogging option available
Full datalogging control through utility
Supports Modbus ® TCP Protocol to get data using Modbus ® TCP client on SCADA/PLC/HMI
4 x Modbus® TCP clients supported at a given time (multi-master/multi-host)
FTP as an open standard protocol - instrument can be used by a third party system integrator with any SCADA or PLC or HMI
3 x FTP clients supported at a given time with 180 seconds internal FTP connection timeout

4 analog isolated outputs with true 2-wire operation, 2 RH, 2 T, 4 RH, 4 T
Isolation : 1500 VAC RMS, 50 Hz/1 minute
Precision Class A Pt100, Pt500, Pt1000 or band gap temperature sensor options
Accuracy ±2% RH, ±0.5 deg C for band gap & ±0.2 deg C for RTD Class A sensor
Any number of outputs (1-4) can be assigned to any parameter : RH, T or dew point
Dual row 7 segment LCD option to display Relative Humidity, Temperature or Dew point (programmable)
Parameter configuration via LCD & keys or remote display module or PC configurator using USB to Serial Converter DCC501
