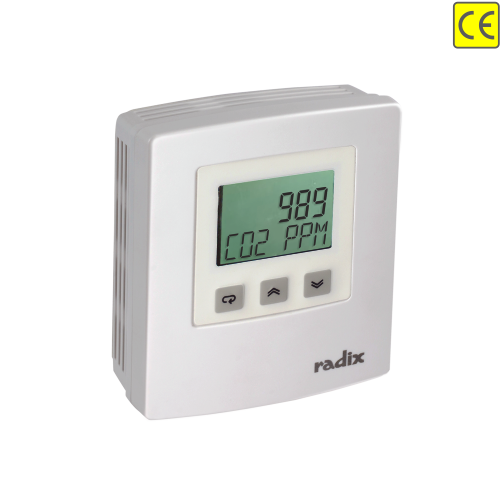

Carbon Dioxide Transmitter, Wall Mount
Model : CDE201
- NDIR CO2 sensor with dual channel detection technology for superior stability in occupied and non-occupied buildings
- Health/status (Heartbeat) LED
- Measurement range upto 10,000 PPM
- Accuracy ±50 PPM ±3% of reading
- Ambient pressure and altitude compensation to achieve high level of CO2 accuracy
- Automatic Self Calibration (ASC) algorithm
- Configurable for CO2 range
- Analog output voltage or current
- Active or passive 4-20 mA output
- Isolated RS485 Modbus® RTU output
- Resistance temperature output
- Optional temperature measurement for band gap sensor
- Parameter configuration and calibration with PC & USB to Serial Converter (DCC501)
- Handheld configurator (HHC202)
- LCD and 3 keys
- Convenient installation with 2-part housing with fixed back and removable electronics
- Stylish housing with vents for air flow across sensor for better accuracy
