Differential Pressure Transmitter, Wall & Duct
Model : DPW201
- Analog voltage or 2-wire 4-20 mA output
- Standard accuracy : ±0.5% of span ±2 Pa
- High accuracy : 1% of span
- Output can be assigned to DP or Air Velocity or Air Flow
- Isolated RS485/MODBUS RTU output
- IP65 protection

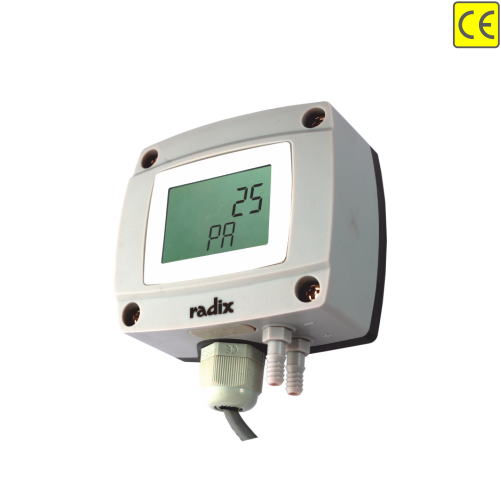

- Dual row backlit LCD option
- Health/status (Heartbeat) LED
- Duct mount option available for static pressure measurement
- Wall mount with rear side cable entry option available on request
- Field selectable ranges
- Convenient installation with 2-part housing with fixed back and removable electronics
- Enclosure opens with 1/4 turn rotation screws
- Provision for 1/2" conduit clamping (for US)
