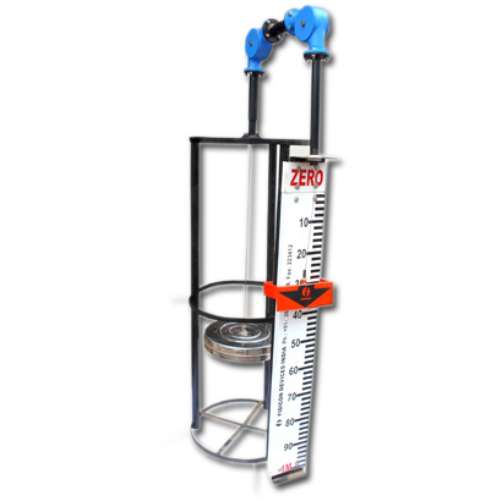

Float & Board Type Level Indicator
Model : FBG201
- Assured level indication without power supply
- Simple and reliable operation
- High visibility display
- Low maintenance & cost-effective
- Weatherproof & corrosion resistant
[level gauge]
"liquid level gauge"
"sight gauges"
"water level gauge"
"level gauge glass"
"float gauges"
"float type level gauge"
"level gauge indicator"
"level gauge glass type"
"float gauge liquid level measurement"
"magnetic float type level gauge"
"level gauge adalah"
Float & Board Type Level Indicator - Model FBG201
Float & board level gauge is a simple economic level measuring instrument. It consists of scale board, pointer, pulley, pulley housing, connection pipe, wire rope, float , guiding flanges, process flanges, anchor plate. Top mounting brackets & side mounting brackets are provided to mount the scale board on the outside of the tank. Connection pipe, pulley, guiding flanges are mounted on the top of the tank. Scale board is also mounted on the side of the tank. Anchor plate is fitted on the bottom of the tank. Float is set to float on the liquid level surface. Float is tied with wire rope passing through the pulleys connected to pointer which rolls on scale board. The level of liquid inside the tank is directly shown by the pointer rolling on the scale board.
