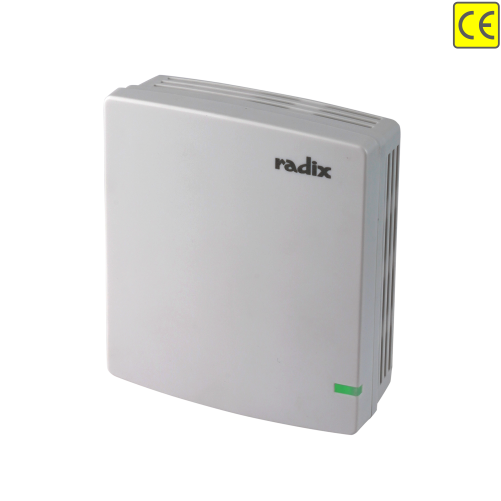

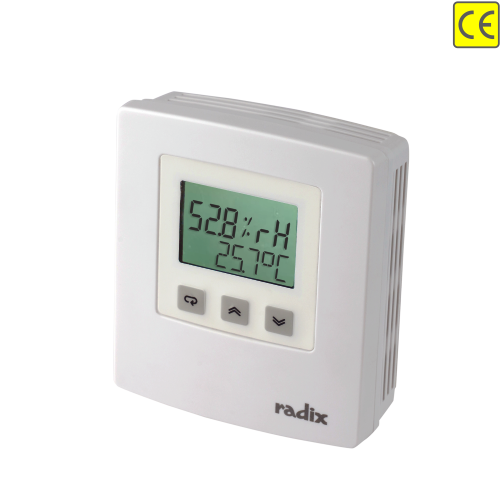

Relative Humidity / Dewpoint / Temperature Transmitter, Wall
Model : HTE201
HTE201, RH & Temperature , 4~20 mA loop powered **, 2%
- 2 x 2-wire, 4-20 mA or 0-10 VDC outputs with RTD resistance output option
- Any or both outputs can be assigned to RH or T or Dewpoint or specific derived physical quantity
- Configuration and calibration using PC with Radix converter DCC501
- Health / status (Heartbeat) LED
- Calculated parameters : Dewpoint, Absolute humidity, Heat index, Enthalpy
Humidity / Dewpoint / Temperature Transmitter, Wall | HTE201 | Radix
Similar Products

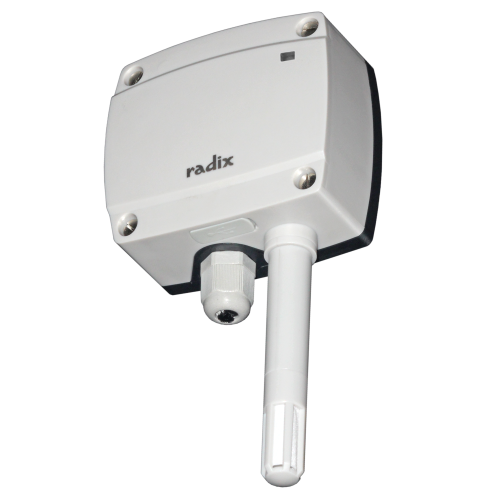

Humidity / Dewpoint / Temperature Transmitter, Wall & Duct |HTW201
- 2 x 2-wire, 4-20 mA or 0-10 VDC outputs
- Any output can be assigned to any parameter
- Configuration and calibration using PC with Radix converter DCC501
- Health/status LED
- Calculated parameters : Dewpoint, Absolute humidity, Heat index, Enthalpy
- Wall, Duct, Outside & Remote sensor versions
- Convenient installation with 2-part housing with fixed back and removable electronics
Dual Relative Humidity / Temperature 2-Wire Output Transmitter, Wall & Duct |RHT861
- 4 analog isolated outputs with true 2-wire operation, 2 RH, 2 T, 4 RH, 4 T
- Isolation : 1500 VAC RMS, 50 Hz/1 minute
- Precision Class A Pt100, Pt500, Pt1000 or band gap temperature sensor options
- Accuracy ±2% RH, ±0.5 deg C for band gap & ±0.2 deg C for RTD Class A sensor
- Any number of outputs (1-4) can be assigned to any parameter : RH, T or dew point
- Dual row 7 segment LCD option to display Relative Humidity, Temperature or Dew point (programmable)
- Parameter configuration via LCD & keys or remote display module or PC configurator using USB to Serial Converter DCC501
Humidity / Temperature Remote Sensors |HTSx01
- Models : HTS201, HTS301, HTS401, HTS501, HTS601
- Compact, Wall mount, Duct mount, SS plate Panel mount versions
- Upto 20 meters distance from the instrument (Cable length)
- Accurate RH+T measurement
Relative Humidity / Temperature Indicator, Battery Operated |RHT803
- Battery operated
- 1 year+ battery life (Duracell 9V, Alkaline)
- Accuracy : ±2% RH, ±0.5°C
- Software calibration - no trimpots
- IP65, rugged construction
- Dual 7-segment LCD display to show Relative Humidity & Temperature
- Programmable sampling interval, unit, bias, etc
- RTC display
- Remote sensor option with maximum cable length upto 25 meters
Customers Also Viewed
2-wire Temperature Transmitter, Head Mount, RTD |TX1HM
- RTD Pt100, 3-wire input
- 2-wire, 4-20 mA analog output
- 8 SPAN ranges, 25 to 600°C (77 to 1112°F)
- 4 ZERO ranges, -100 to +70°C (-148 to +158°F)
- Accurate : 0.1% temperature linear
Clean Room Monitor, 3 Row |Hawkeye-3 Row
- 3 channel RH, Temperature & DP measurement
- Potential free digital input for AHU status
- 3 programmable alarms with visual annunciation
- No-touch operation for alarm acknowledge
- 3 x 4-20 mA or 0-10 V analog output
- RS485 Modbus® RTU
- 18-35 VDC supply
- 3-digit, 0.8” seven segment display
- Datalogging feature
- Process value, alarm and time stamp logging
- Memory for 31 days with 1 minute datalogging interval
- Full datalogging control through utility
Air Quality Monitor, PM1/PM2.5/PM4.0/PM10/CO2/CO/ TVOC/RH-T/AQI, 3 Relays, RS485 Modbus |AQM201
- Laser scatter method sensor for Particulate Matter measurement
- MEMS metal oxide semiconductor sensor to detect poor Air Quality
- NDIR CO2 sensor technology for superior stability in occupied and non-occupied buildings
- Measurement : Particulate Matter, TVOC, RH/T, CO2, CO, Air Quality Index
- Isolated RS485 Modbus® RTU output
- Dual relay output, 250 VAC-5A
- Field Replaceable PM, CO2, CO, TVOC, RH/T sensor
- RH/T sensor also provides the parameters like : Dewpoint, Absolute humidity, Heat index, Enthalpy, Air density

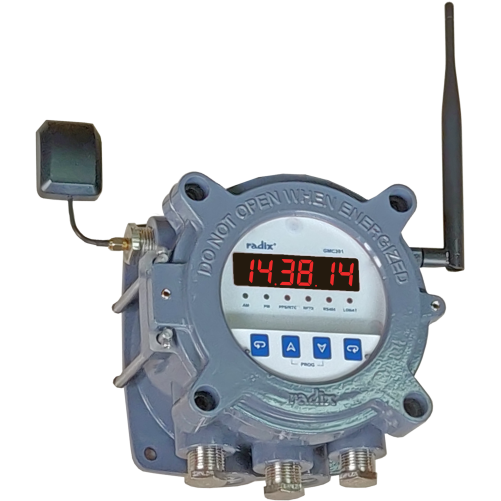

Flameproof GPS Clocks - RF, RS485 Master Clock |GMC201 FLP-RF
- Time Source - GPS satellite or NTP server
- Ethernet communication for reduced synchronizing time
- Software for synchronizing PC time
- Wireless solution for reduced cabling
- Range expansion without using additional hardware
- Built-in RTC with battery backup
- 39 Timezones and Daylight Saving Time adjustment
- 12H and 24H format
- User friendly interface for configuration
- IP65 and Flameproof compliance
- 2.3” and 4.0” super bright seven segment LED display
- Multiple colour options - Red, green and white colours
- Multiple mounting arrangements like Table-top, wall mount, flush mount and hanging models
- Health monitoring utility for Ethernet and RS485 clocks
- Parameter configuration utility for master clocks and RS485 clocks
- Provision to update RTC of RS485 devices
