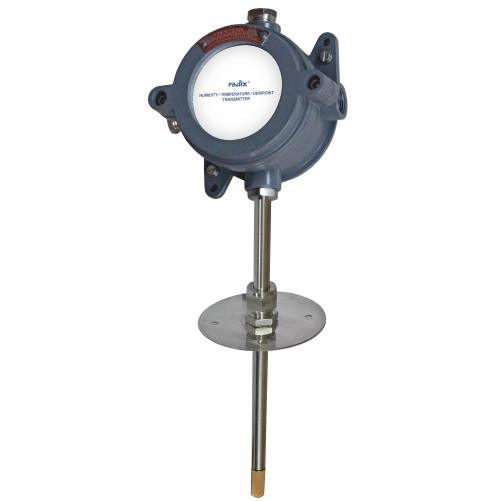

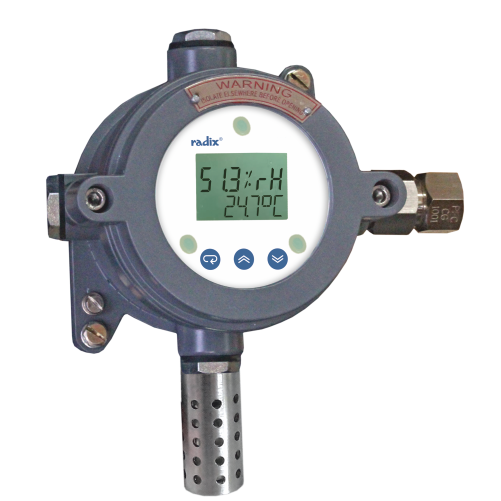

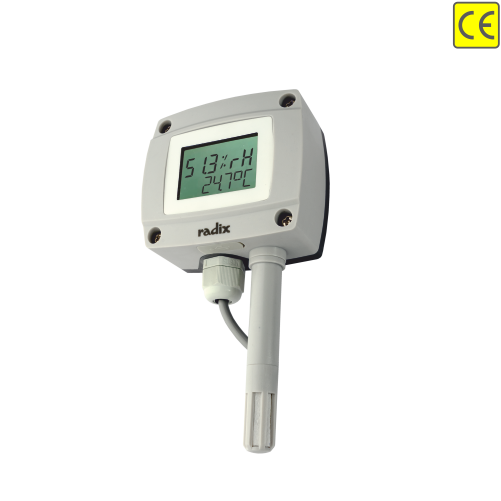

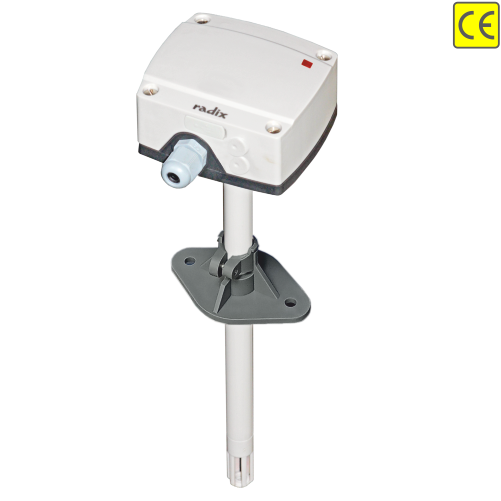

Humidity / Dewpoint / Temperature Transmitter, Wall & Duct
Model : HTW201
HTW201, Relative Humidity & Temperature, Duct, Smart sensor (Bandgap), 4-20 mA loop powered, Analog output (same as RH output), 2%, PTFE membrane, For future use, For future use
- 2 x 2-wire, 4-20 mA or 0-10 VDC outputs
- Any output can be assigned to any parameter
- Configuration and calibration using PC with Radix converter DCC501
- Health/status LED
- Calculated parameters : Dewpoint, Absolute humidity, Heat index, Enthalpy
- Wall, Duct, Outside & Remote sensor versions
- Convenient installation with 2-part housing with fixed back and removable electronics
Humidity, Dewpoint, Temperature Transmitter | HTW201 | Radix
Similar Products
Relative Humidity / Dewpoint / Temperature Transmitter, Wall |HTE201
- 2 x 2-wire, 4-20 mA or 0-10 VDC outputs with RTD resistance output option
- Any or both outputs can be assigned to RH or T or Dewpoint or specific derived physical quantity
- Configuration and calibration using PC with Radix converter DCC501
- Health / status (Heartbeat) LED
- Calculated parameters : Dewpoint, Absolute humidity, Heat index, Enthalpy
Dual Relative Humidity / Temperature 2-Wire Output Transmitter, Wall & Duct |RHT861
- 4 analog isolated outputs with true 2-wire operation, 2 RH, 2 T, 4 RH, 4 T
- Isolation : 1500 VAC RMS, 50 Hz/1 minute
- Precision Class A Pt100, Pt500, Pt1000 or band gap temperature sensor options
- Accuracy ±2% RH, ±0.5 deg C for band gap & ±0.2 deg C for RTD Class A sensor
- Any number of outputs (1-4) can be assigned to any parameter : RH, T or dew point
- Dual row 7 segment LCD option to display Relative Humidity, Temperature or Dew point (programmable)
- Parameter configuration via LCD & keys or remote display module or PC configurator using USB to Serial Converter DCC501
Humidity / Temperature Remote Sensors |HTSx01
- Models : HTS201, HTS301, HTS401, HTS501, HTS601
- Compact, Wall mount, Duct mount, SS plate Panel mount versions
- Upto 20 meters distance from the instrument (Cable length)
- Accurate RH+T measurement
Relative Humidity / Temperature Indicator, Battery Operated |RHT803
- Battery operated
- 1 year+ battery life (Duracell 9V, Alkaline)
- Accuracy : ±2% RH, ±0.5°C
- Software calibration - no trimpots
- IP65, rugged construction
- Dual 7-segment LCD display to show Relative Humidity & Temperature
- Programmable sampling interval, unit, bias, etc
- RTC display
- Remote sensor option with maximum cable length upto 25 meters
