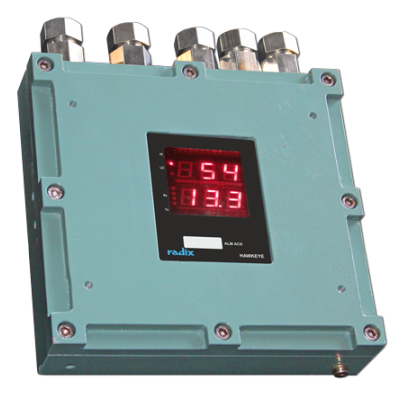

Flameproof Clean Room Monitor, 2 Row
With RS485 MODBUS RTU + Serial Datalogging
Model : Hawkeye FLP-2 Row
- No of Input - 2
- Suitable for 50mm modular panel
- Potential free Digital Input for AHU status
- Real Time Clock with battery Backup
- 3 programmable Alarms with visual annunciation
- No-touch operation for Alarm Acknowledge
- 2 x 4-20mA or 0-10V analog output
- RS485 / Modbus RTU
- 18-35 VDC supply
- 2 row, 0.8” seven segment Display
- Datalogging Feature
- Process Value, Alarm and Time Stamp Logging
- Memory for 31 days with 1 minute datalogging interval
- Full datalogging control through utility
