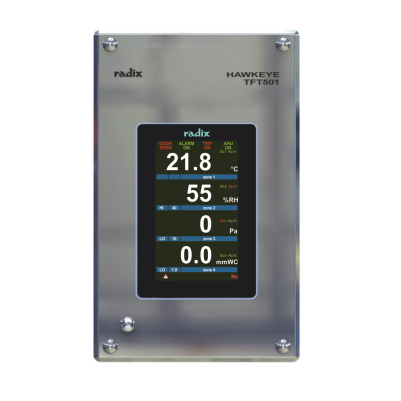

Clean Room Indicator, 5" Display, Ethernet with Datalogging
Model : Hawkeye TFT501
- 4 Remote analog inputs with selectable Humidity, Temperature & Differential Pressure measurement
- 4 Digital input with user defined tags
- 1 Integral DP sensor
- 3 Analog outputs 4-20 mA/0-10 VDC with user selectable channel
- 4 Digital outputs with user defined tags
- 4 Relays with user selectable channels and user defined tags
- 5" TFT LCD with capacitive touch for user friendly navigation
- 21-days data stored with data interval 1-999 minutes
- Data is in CSV format and easy to use
- Ethernet port for retrieving of logged data using FTP protocol
- Software programmable ranges, units, input types, user defined inputs and user tags for all channels
- Power supply 17-30 VDC operated
- Alarm acknowledgment through touch
- Real time clock with battery back-up and Lo-Bat indication
- Calibration due date notification
- Help indication for user to change settings and access at ease
- Ethernet port for communication with PLC, SCADA
- Powerful, user-friendly, FDA21CFR Part11 compliant SCADA available
