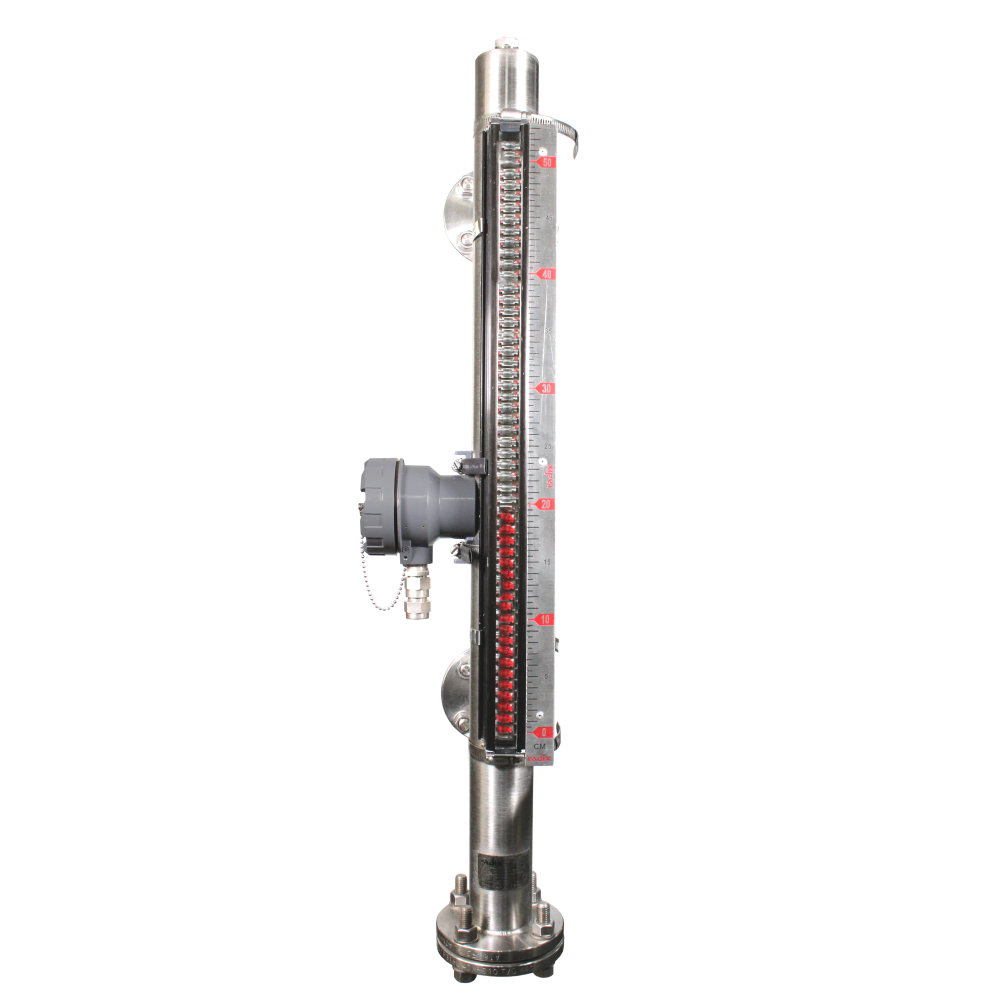

Magnetic Level Gauge
Model : MLG201
- Continuous level monitoring with 4-20 mA transmitter output
- Direct visible level indication
- No process fluid in contact with the flapper indicating system
- Safe for corrosive, toxic & flammable liquids
- Economical level measurement
Mounting
1.
- Side-side
Visibility
1.
- Maximum 5500 mm (216")
Repeatability
1.
- 5-10 mm (0.19"-0.39")
Resolution
1.
- 10 mm (0.39")
Float Diameter
1.
- Standard : 50 mm
Centre To Centre Distance
1.
- Maximum 5500 mm (216") : With no joints
- Larger C-C distance : With joints
Flappers Indicating System - MOC
1.
- Aluminium anodised / Stainless steel
Flapper Colours
1.
- Bicolour red and silver, Float failure yellow
Vent Connection
1.
- Flanged/Plug/Valve
Drain Connection
1.
- Flanged/Plug/Valve
Enclosure - MOC
1.
- Cast Al weatherproof to IP66 (≈NEMA 4X)*
Flameproof & Ingress Protection
1.
- Ex db IIC T6 Gb IP66 (≈NEMA 4X)*
Conduit Connection
1.
- 1⁄2" NPT, 3⁄4" ET
No. of Floats
1.
- One
Chamber Size
1.
- Standard : 2"/60.3 mm
Maximum Temperature
1.
- 400°C (752°F)
Maximum Pressure
1.
- 100 bar
Density Of Fluid
1.
- Minimum 0.5 gm/cc
Wetted Parts - MOC
1.
- SS304/SS316/PP/PPH/Teflon(PTFE)/PVDF/SS+PTFE coating /SS+PTFE lining
Accessories
1.
- Scale - MOC : SS304/SS316/Acrylic/Polycarbonate
- Alarm switch : Microswitch 1SPDT/2SPDT; Reed switch SPDT
- Transmitter output : 2-wire, 4-20 mA / 4-20 mA with HART option
