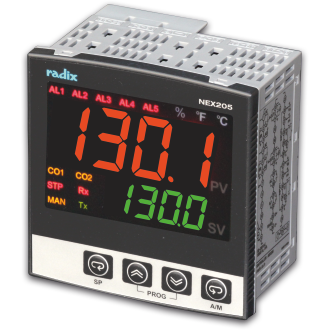

Single/Dual Channel PID Controller, Full-featured, 96Wx96Hx60D
Model : NEX205
NEX205, PID - Single loop, 1 x Universal input, 85-265 VAC
- Single / Dual loop PID / Heat+Cool PID / 16-step profile control
- Universal input
- 5 relays, 2 isolated analog outputs, RS485/Modbus® RTU
- 6 digital inputs
- Field-selectable control device (relay/SSR/analog output)
Temperature Controller
Temperature Controller
PID Controller
PID Controller
PID Temperature Controller
PID Temperature Controller
programmable temperature controller
dual temperature controller
low cost temperature controller
pid controller manufacturer
digital temperature controller
on off temperature controller
temperature controllers
on off controller
autotune controller
temperature control pid
autotuning pid
digital temperature controller suppliers
NEX20x is a series of full-featured PID controllers manufactured by Radix. They are used in a host of industrial control applications for temperature, pressure, level, flow, humidity and other parameters. NEX205 is housed in a ¼ DIN plastic enclosure measuring only 96x96x60. The UL94V-0 ABS plastic enclosure has a rating of IP66 (IEC) / NEMA 4X. This PID controller is CE certified and carries a 3-year warranty.
NEX205 features single or dual loop PID control, and has a temperature vs time 16-step profile.It has two universal inputs, each of which can be thermocouple (B,E,J,K,N,R,S,T), RTD (Pt100), 4-20mA or 0-10V and also available in six digital inputs. This PID controller has two, isolated analog outputs (0/4-20mA or 0-10V) which can be used for control or retransmission. NEX205 also has upto 5 relays which can be used for control or alarms. Bumpless Auto/Manual control is provided. Control modes available are ON/OFF, single PID, dual PID, 16 step profile and Heat+cool. This PID controller features large LED displays for Process Variable (25.4mm/1”) and Setpoint (14.2mm/0.56”), and has backlit LEDs with labels. The PID controller NEX205 has MODBUS RTU communication with Isolated RS485.
Other versions of NEX205 available : with Ethernet/MODBUS TCP protocol, Zero-Loss Datalogging; with Wi-Fi and Datalogging; AHU Controller. NEX205 is also available in a flameproof enclosure (I, IIA & IIB).
