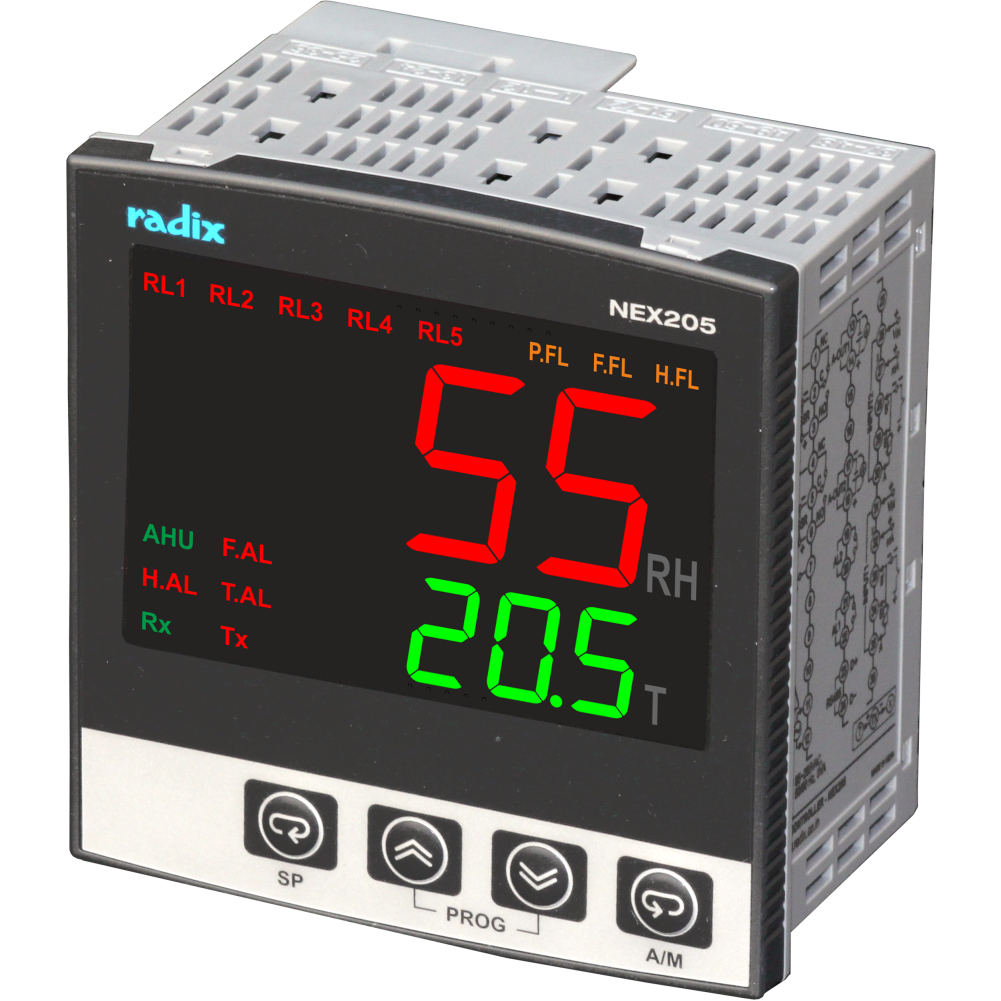

Dual Channel Stand-alone AHU Controller, Full-featured, 96Wx96Hx60D
Model : NEX205 AHU
- Dual loop PID Controller with AHU Control Logic
- Dual Universal Input, Large Display
- 7 relays, 2 isolated analog outputs, RS485/Modbus RTU
- 3 or 6 digital inputs
- IP66 (NEMA 4X)
- 85-265VAC, 50/60hz supply 20-55 VDC
- 50 / 200 millisecond sampling interval
- Bumpless Auto/Manual transfer
