NEX20x is a series of full-featured PID controllers manufactured by Radix. With autotuning PID and fuzzy logic controls, these PID controllers are used in a host of industrial control applications for temperature, pressure, level, flow, humidity and other parameters. The NEX20x series comprises DIN sizes 116, ⅛ , ¼ (48x48, 48x96, 96x48, 96x96). These PID controllers are also available in flame proof (explosion proof) versions for hazardous applications. Variants include 2-zone and 3-zone PID Controller, 2-zone and 3-zone Indicator with Alarms, PID Controller with Ethernet and Data logging, PID Controller with Wi-Fi and Data logging.

The NEX206 PID Controller has two universal inputs. The input types include 14 thermocouples, RTDs (Pt100, Pt1000), 4-20 mA (DC current) and 0-10V (DC Voltage). The 4 to 20 mA input does not require any external resistor to be fixed at the terminals. This improves the accuracy greatly, apart from eliminating the inconvenience. NEX206 also has a square root function for each analog input.

NEX206 has 6 digital inputs and 2 isolated analog outputs (DC current - 4 to 20 mA, DC voltage - 0 to 10V) for control as well as retransmission. They can also be used as a setpoint output. This PID controller has 5 relays with direct/reverse control action. Alarms in the NEX206 can be reset through user key or digital input. Control modes available are single PID, dual PID, ON/OFF, 16-step profile and Heat+Cool.

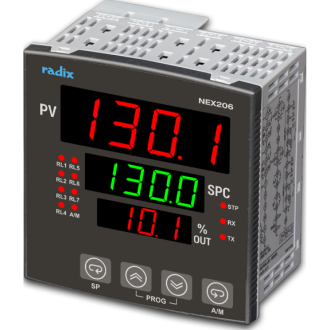

The PID controller NEX206 has MODBUS RTU communication with isolated RS485. Baud rates can be programmed from 2400 to 57600 baud. The NEX206 PID Controller features a large display for Process Variable(20.32mm/0.8”), Setpoint(13.20mm/0.52”), and Output power(9.90mm/0.39”). It also includes backlit LEDs with labels for ease of use.

Additional features of NEX206 includes: soft start; bumpless auto/manual transfer; anti-reset windup; four PID groups; user friendly keyboard interface with password protection; and programmable sampling time of 50ms / 200ms. The NEX206 PID temperature controller has a supply voltage of 85-265 VAC with frequency 50/60 Hz or 20-55 VDC.

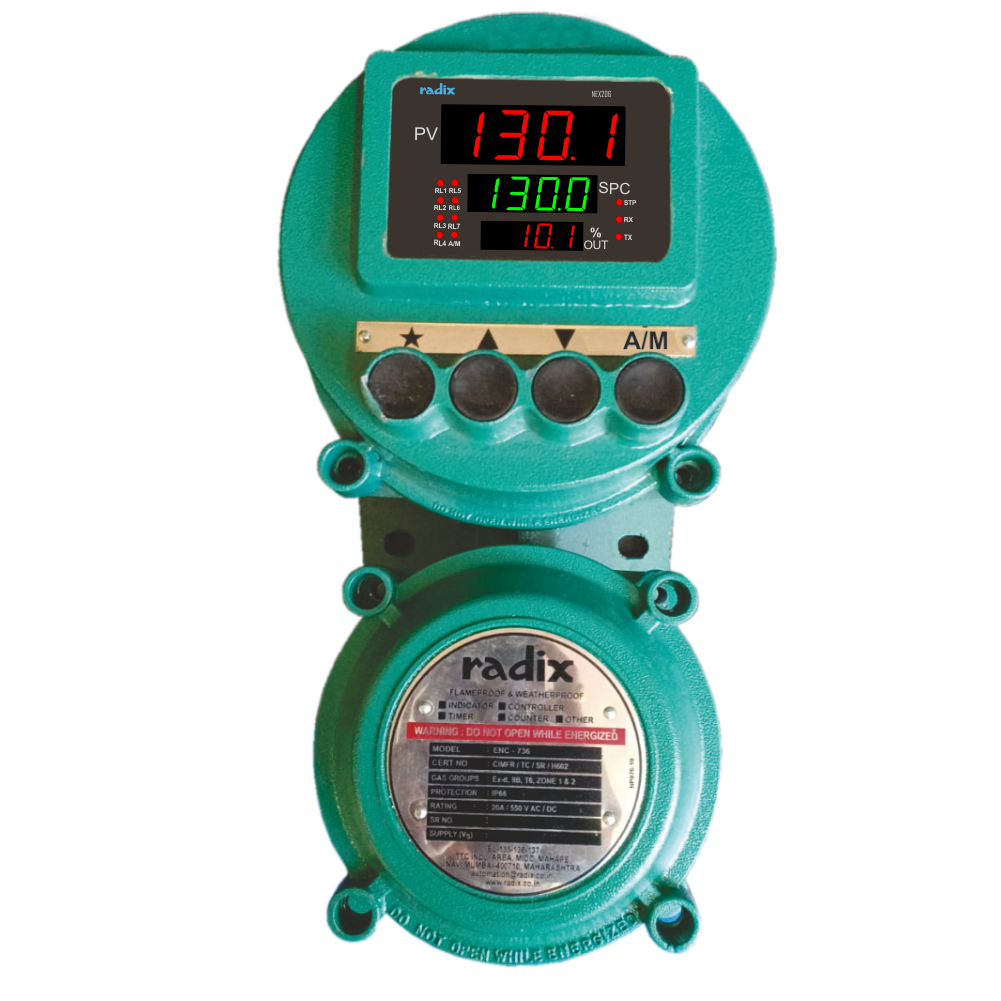

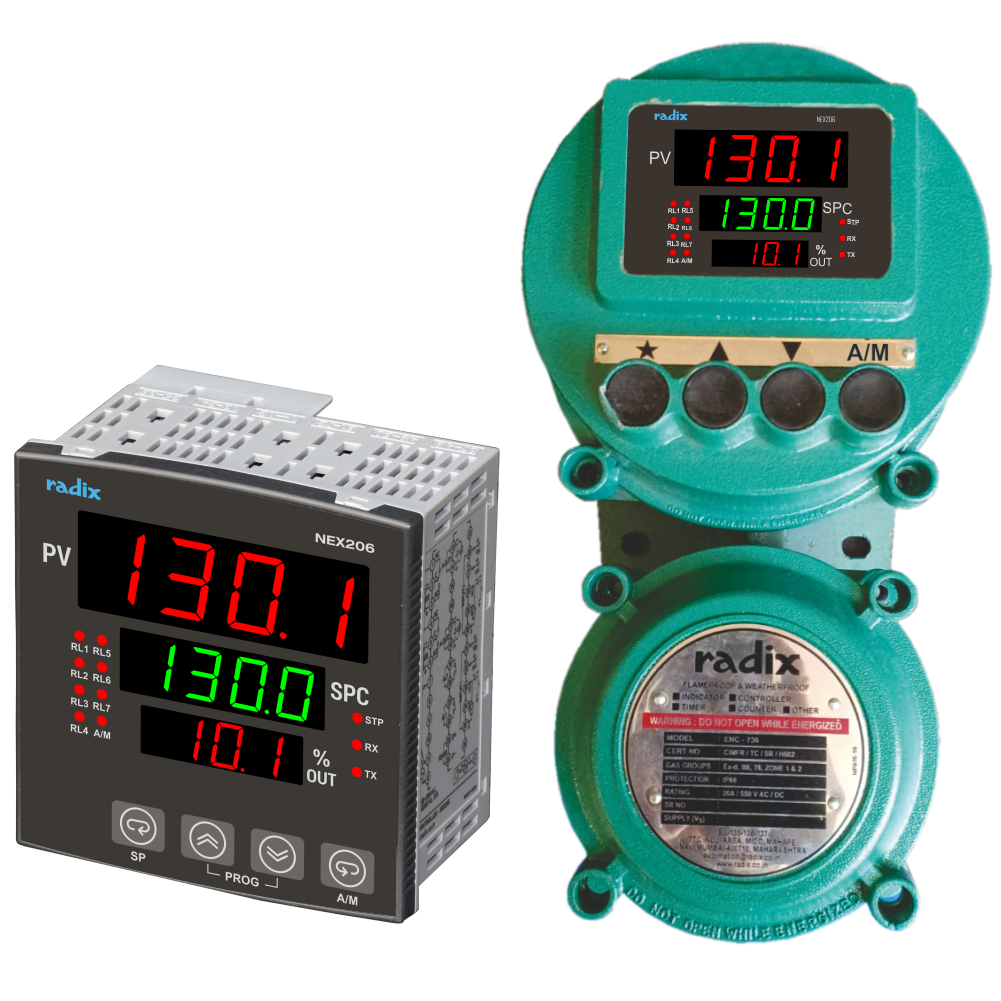

NEX206 PID Controller is housed in a 96x96x60 mm (1/4 DIN) enclosure made of UL94V-0 ABS. It has an IP66 (IEC) / NEMA 4X rating. The NEX206 PID Controller is CE certified. It carries a 3-year warranty. NEX206 is also available in a flameproof enclosure (I, IIA & IIB).
