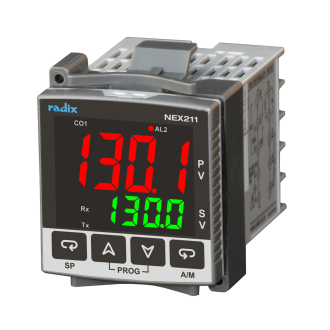

PID Controller, Full-featured, 48Wx48Hx60D, OEM Product
Model : NEX211
- Single loop PID control
- Universal input
- 3 relays, 1 isolated analog output
- RS485/Modbus® RTU option
- Field-selectable control device (relay/SSR/analog output)
Temperature Controller
Temperature Controller
PID Controller
PID Controller
PID Temperature Controller
PID Temperature Controller
programmable temperature controller
dual temperature controller
low cost temperature controller
pid controller manufacturer
digital temperature controller
on off temperature controller
temperature controllers
on off controller
autotune controller
temperature control pid
autotuning pid
digital temperature controller suppliers
The NEX211 PID Controller (48x48x61 mm) has one universal input. Input types include 8 thermocouples, RTDs (Pt100, 3-wire), 4-20 mA (DC current) and 0-50 mV; 0-10V (DC Voltage). The 4 to 20 mA input does not require any external resistor to be fixed at the terminals. This improves the accuracy greatly, apart from eliminating the inconvenience.
NEX211 has 1 isolated analog output (DC current - 4 to 20 mA, DC voltage - 0 to 10V) for control as well as retransmission. They can also be used as a setpoint output. The NEX211 PID controller has 2 relays with direct/reverse control action. Alarms in the NEX211 can be reset through user key or digital input.
Control modes in NEX211 include : PID, ON/OFF and Heat+Cool. The PID controller NEX211 has MODBUS RTU communication with isolated RS485. Baud rates can be programmed from 2400 to 57600 baud.

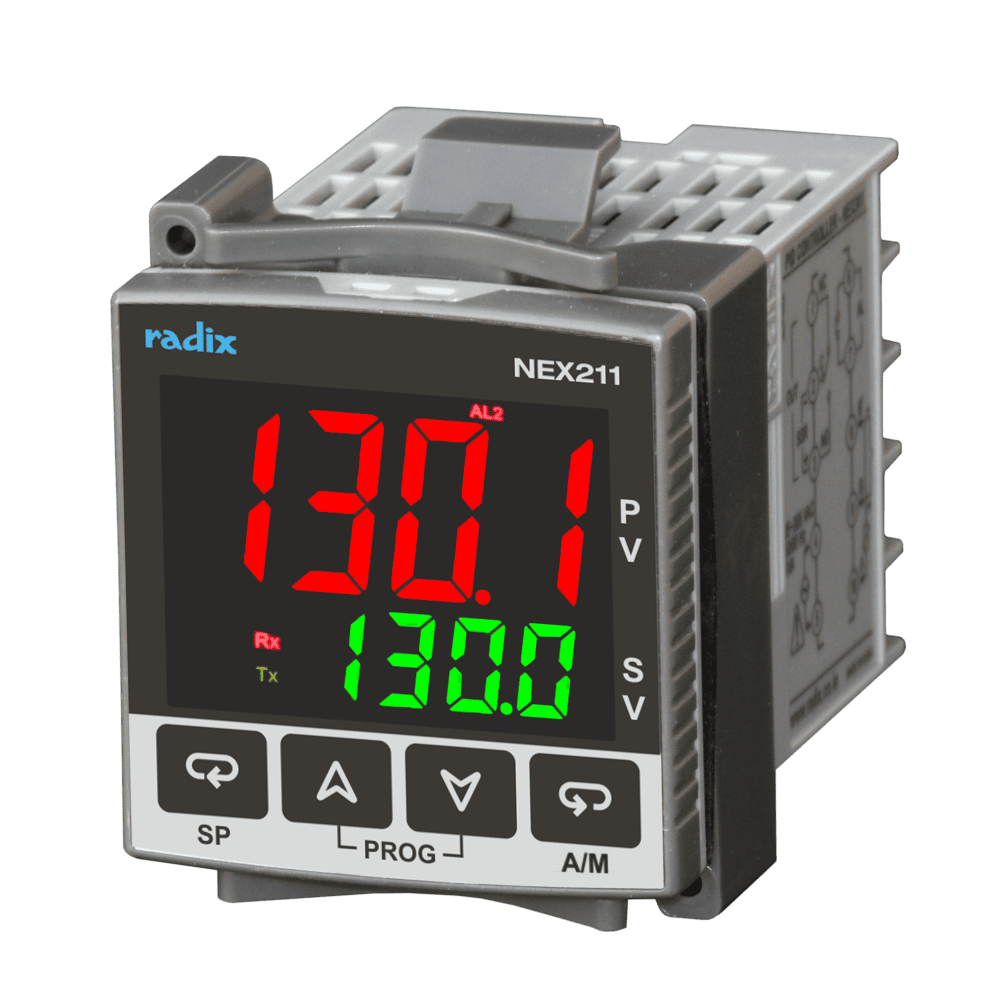

The NEX211 PID Controller features a large display for Process Variable (16.3mm/0.64”) and Setpoint (9mm/0.354”), and has backlit LEDs with labels for ease of use. Additional features of NEX211 include: soft start; bumpless auto/manual transfer; autotuning function; user friendly keyboard interface with password protection; and programmable sampling time of 200ms. The NEX211 PID temperature controller has a supply voltage of 85-265 VAC with frequency 50/60 Hz or 20-55 VDC. NEX211 PID Controller is housed in a 48x48x61 mm enclosure made of UL94V-0 ABS.
