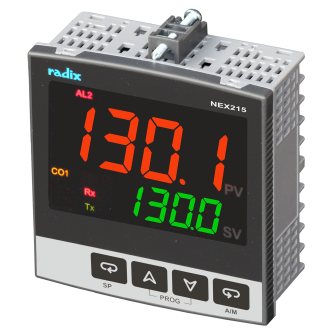

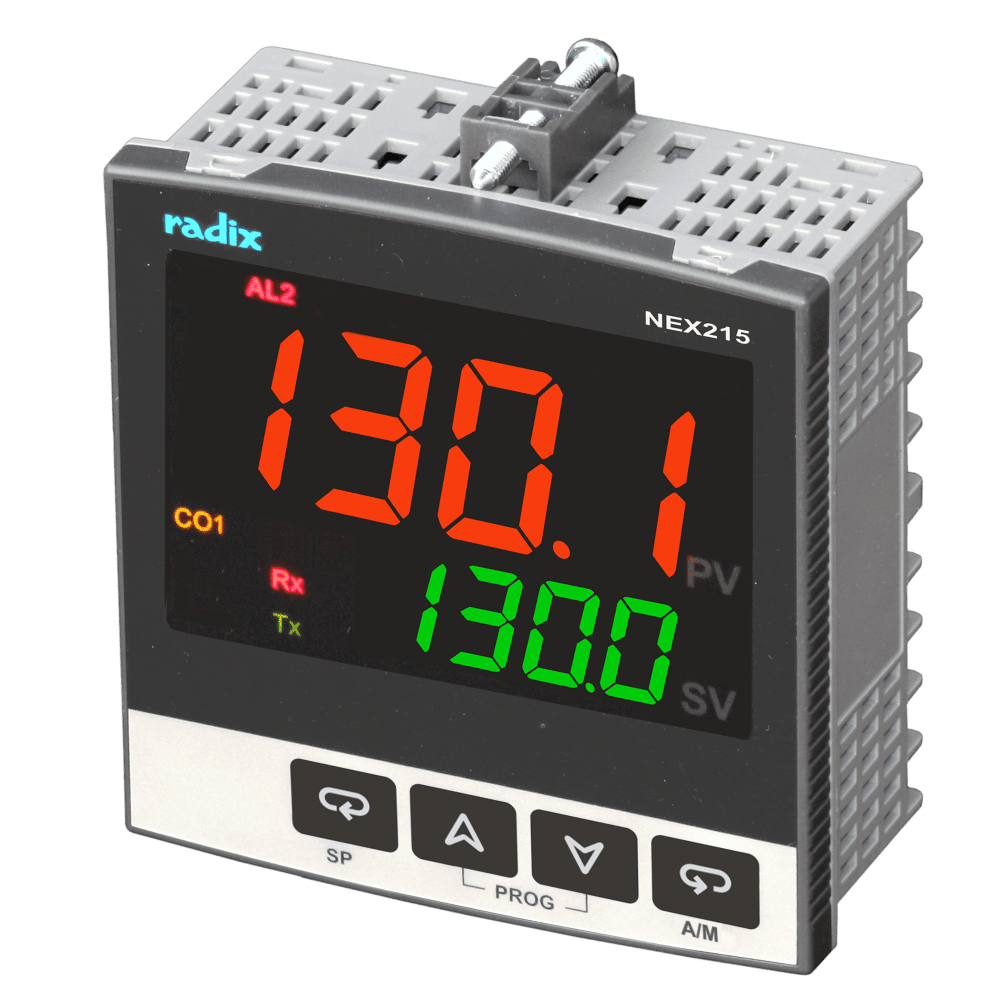

The NEX215 PID Controller (96x96x35 mm) has one universal input. Input types include 8 thermocouples, RTDs (Pt100, 3-wire), 4-20 mA (DC current) and 0-50 mV; 0-10V (DC Voltage). The 4 to 20 mA input does not require any external resistor to be fixed at the terminals. This improves the accuracy greatly, apart from eliminating the inconvenience.

NEX215 has 1 isolated analog output (DC current - 4 to 20 mA, DC voltage - 0 to 10V) for control as well as retransmission. They can also be used as a setpoint output. The NEX215 PID controller has 2 relays with direct/reverse control action. Alarms in the NEX215 can be reset through user key or digital input.

Control modes in NEX215 include : PID, ON/OFF and Heat+Cool. The PID controller NEX215 has MODBUS RTU communication with isolated RS485. Baud rates can be programmed from 2400 to 57600 baud.

The NEX215 PID Controller features a large display for Process Variable (25.4mm/1”) and Setpoint (14.2mm/0.56”), and has backlit LEDs with labels for ease of use. Additional features of NEX215 include: soft start; bumpless auto/manual transfer; autotuning function; user friendly keyboard interface with password protection; and programmable sampling time of 200ms. The NEX215 PID temperature controller has a supply voltage of 85-265 VAC with frequency 50/60 Hz or 20-55 VDC. NEX215 PID Controller is housed in a 48x48x61 mm enclosure made of UL94V-0 ABS
