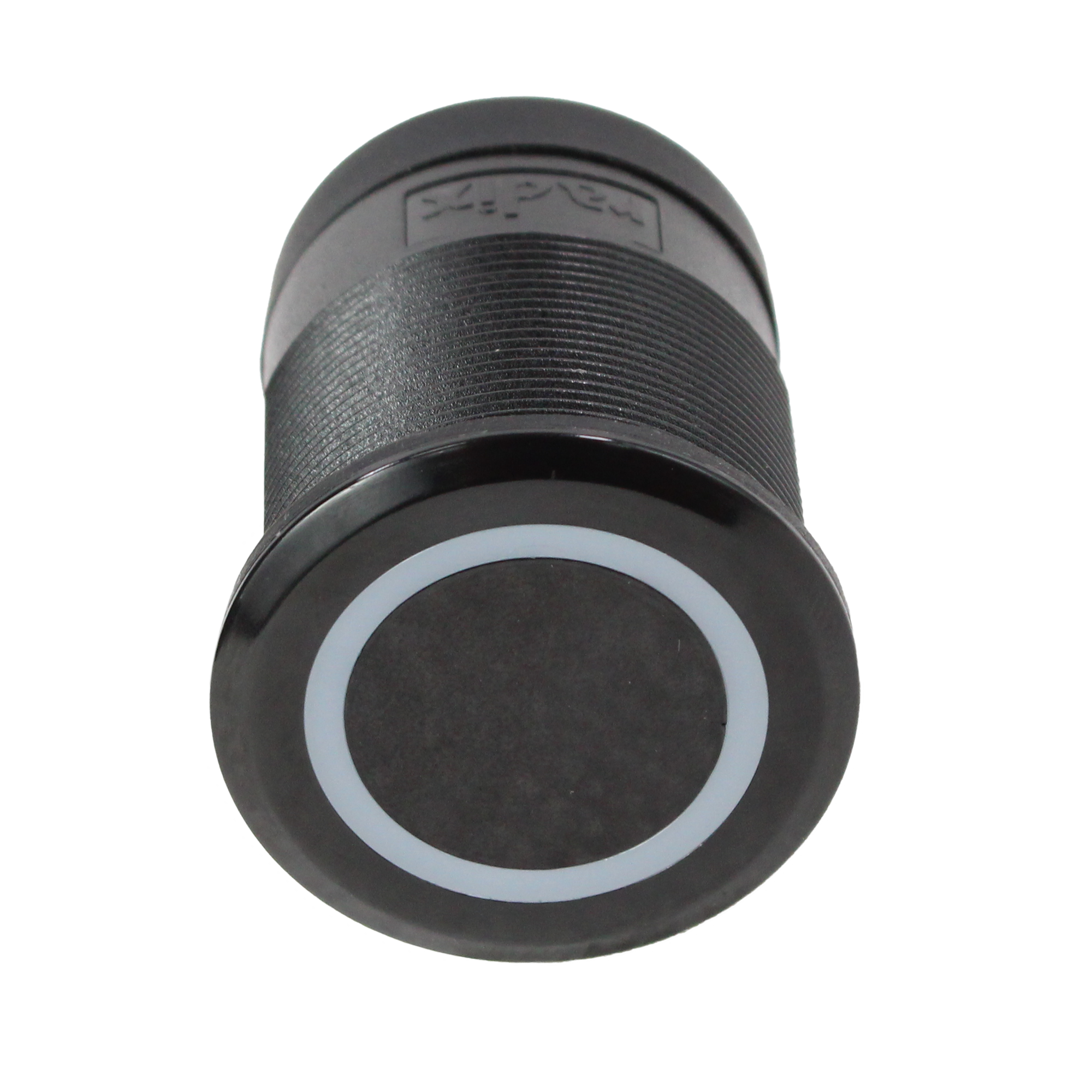

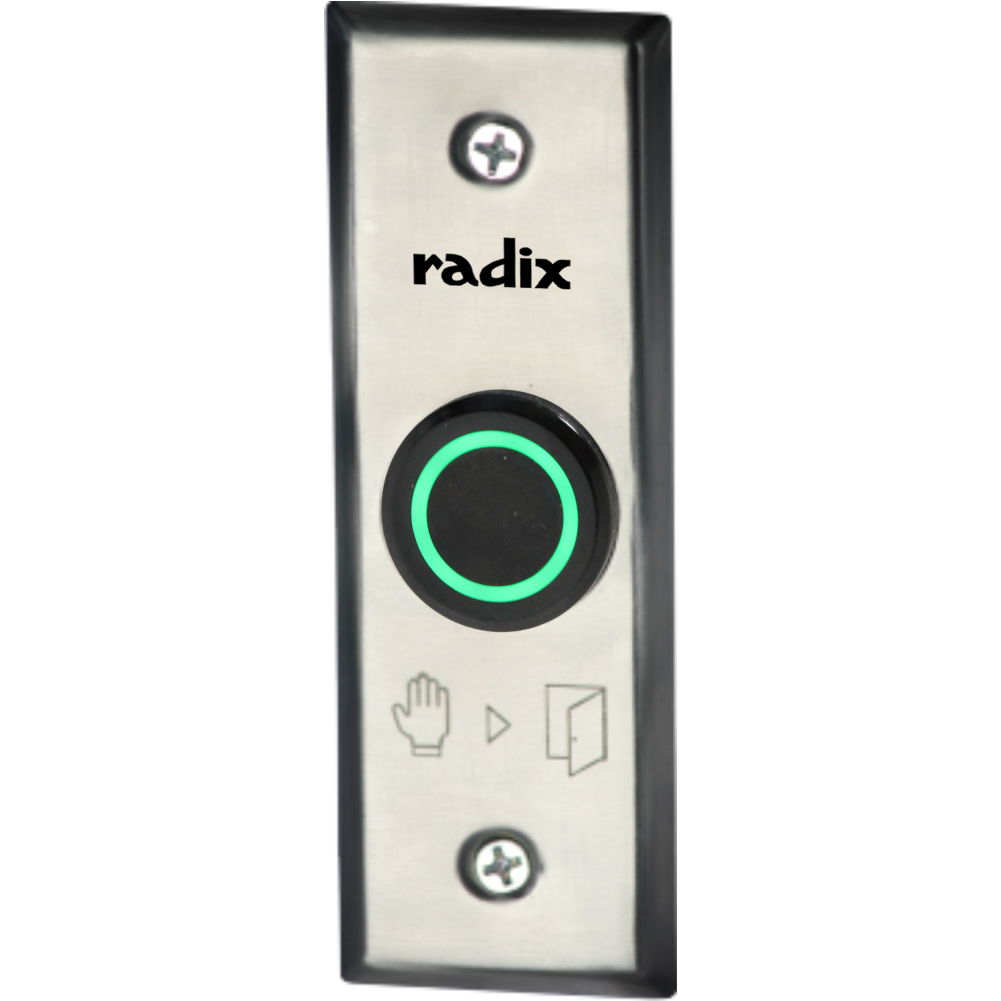

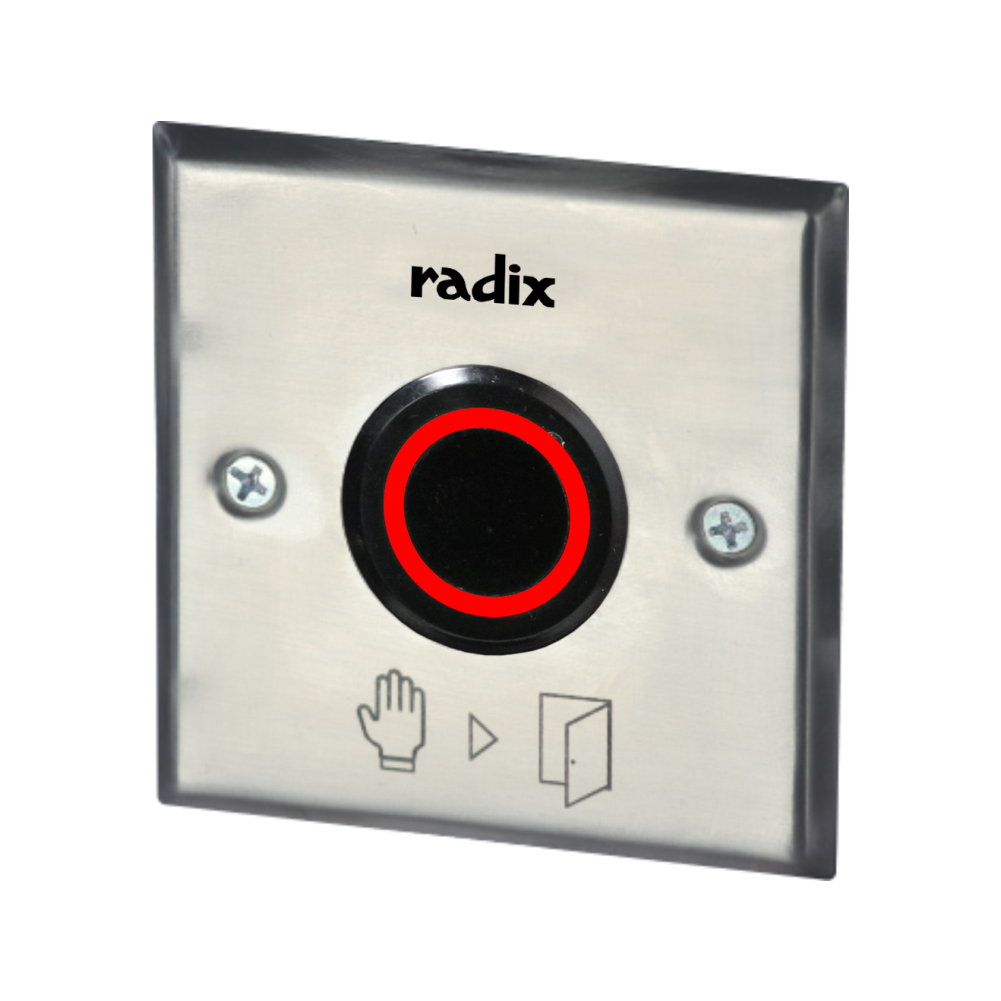

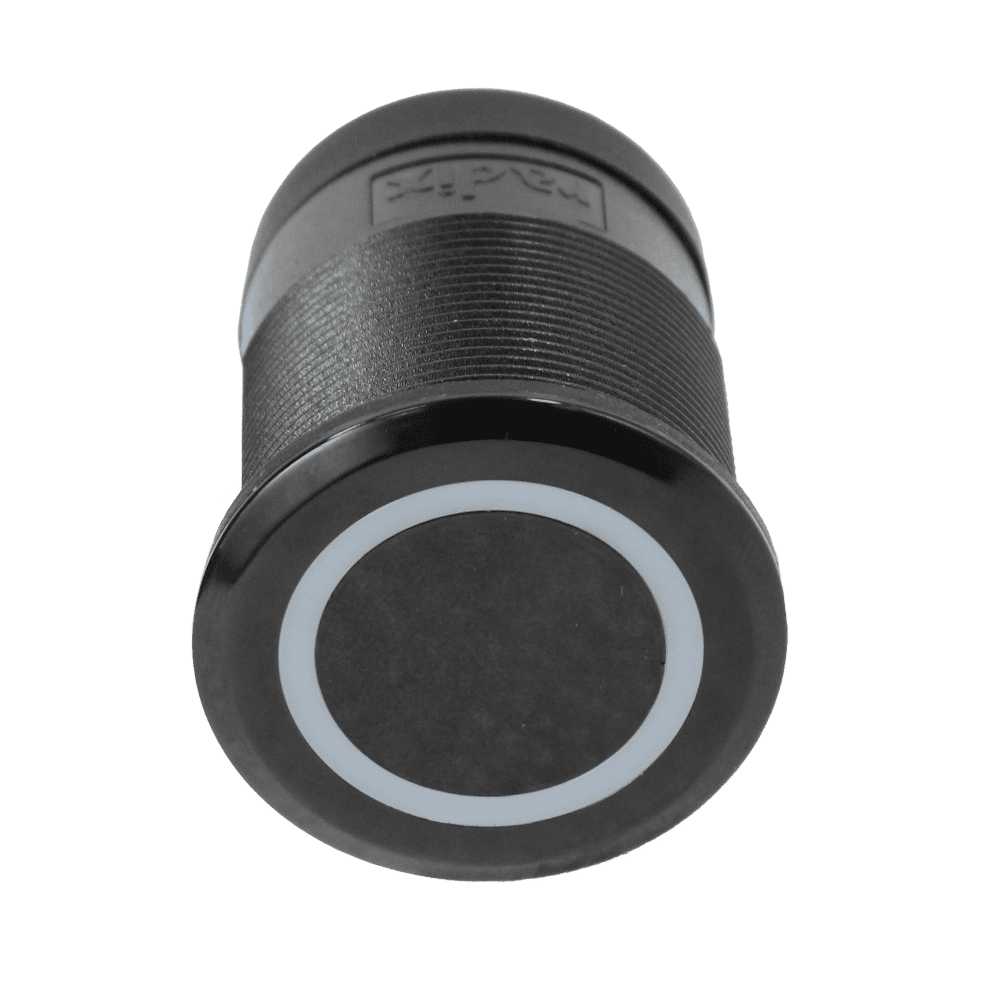

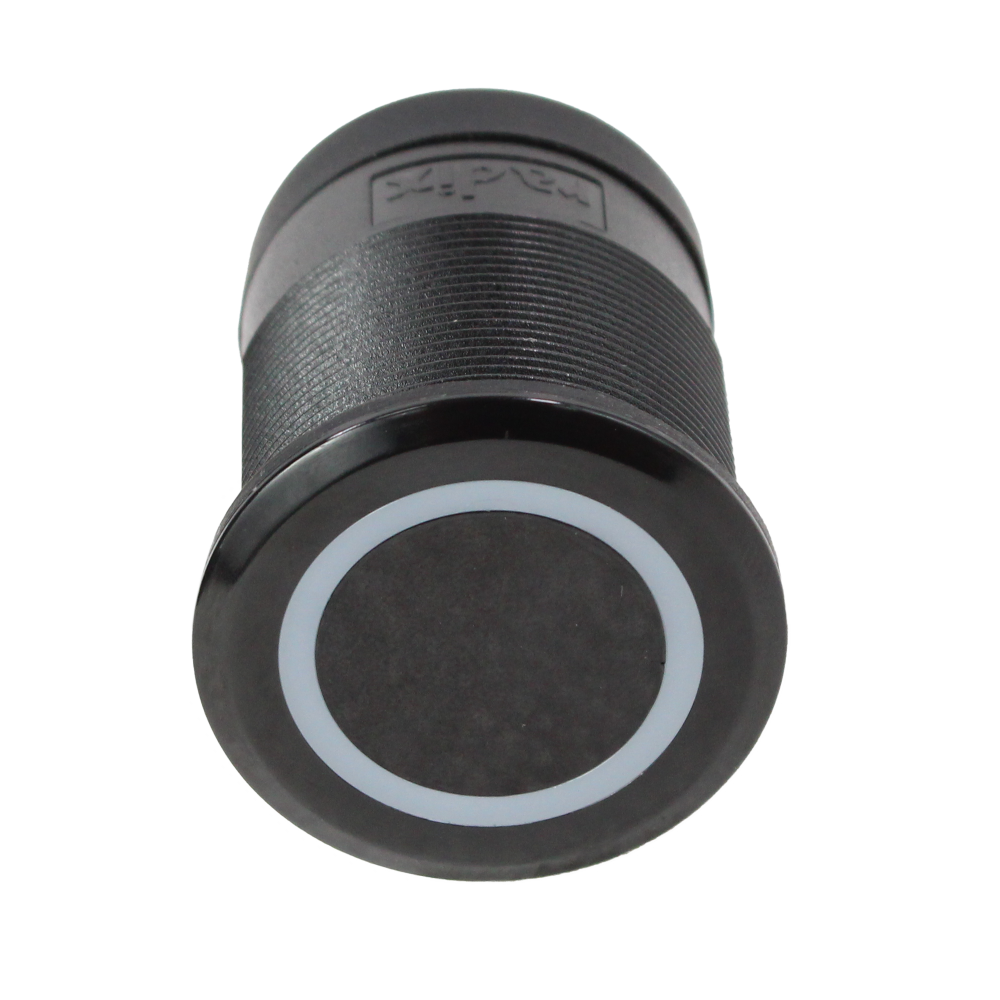

No Touch Switch With LED & Without Buzzer Control
Model : NTS203
- Power supply : 12 - 24 VDC
- Sensing range : 7 to 14 cm (±20%)
- Output : Potential free relay contact
- Inputs : Red LED control, Green LED control
- Ingress protection : IP65 (≈NEMA 3SX)
- Isolation between coil and contact: 500 VAC / 1min
- Brush or mirror finish plates
- Various SS plate sizes
- Dimensions : 52x46x115 mm (rectangular), 86x46x92 mm (square), 41x46x115 mm (rectangular)
