Safety Standards - Low Voltage Directive 2014/35/EU : Compliant with IEC 61010-1

• Overvoltage category : II

• Pollution degree : 2

• Means of protection : Class II

• Dielectric strength : 3000 VAC for 1 minute between primary and secondary terminals

• 1500 VAC for 1 minute between secondary terminals

• Primary terminals - Mains power supply, Secondary terminals - Input, Relays, Analog output, RS485

• Ingress protection : Front IP66 (when properly installed)

EMC Standards : Compliant with IEC 61326-1

• Conducted Emission : CISPR11 : 2019, Class A

• Radiated Emission : CISPR 11 : 2019, Class A

• Radiated Susceptibility Immunity : IEC 61000-4-3

• Conducted RF Disturbance Immunity : IEC 61000-4-6

• Power Frequency Magnetic Field Immunity : IEC 61000-4-8

• Electrostatic discharge immunity : IEC 61000-4-2

• Fast Transients/Burst Immunity : IEC61000-4-4

• Surge Immunity : IEC61000-4-5

• Voltage Dips/Interruption Immunity : IEC61000-4-11

Directive: 2015/863/EU

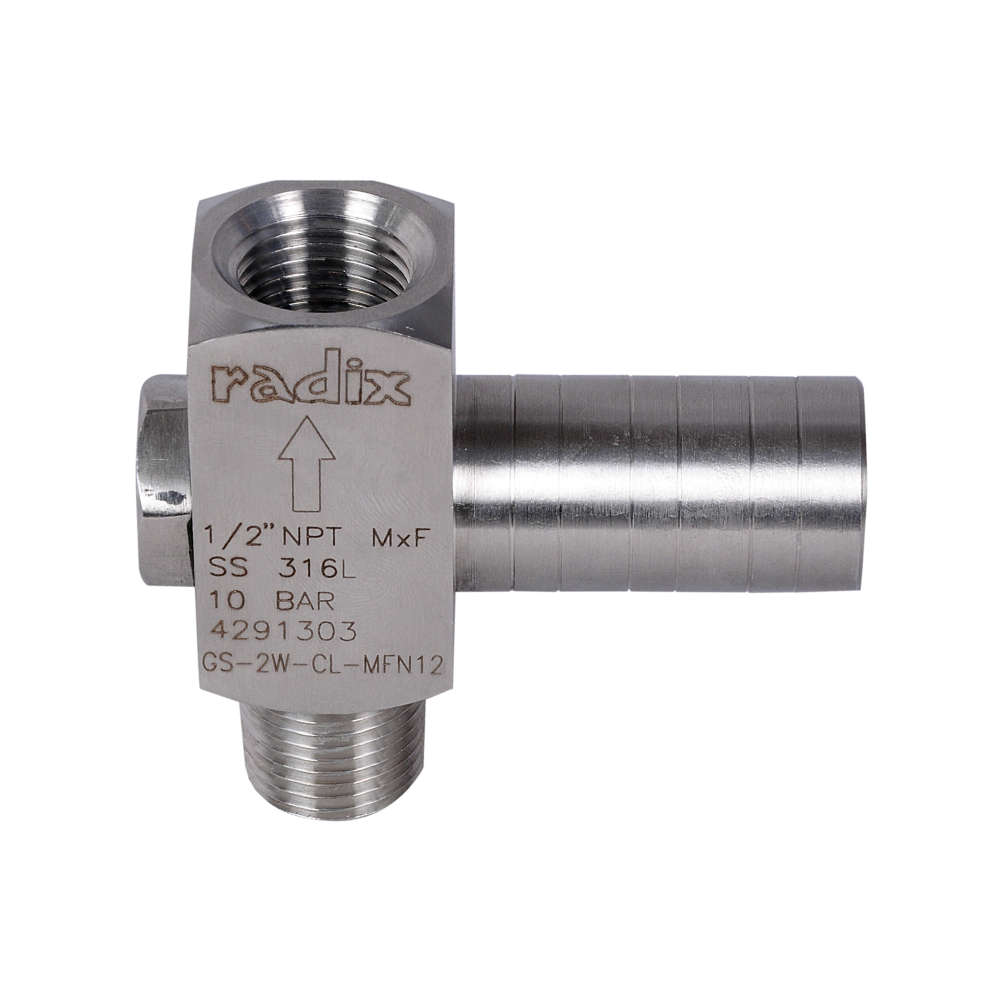

Gauge Saver
