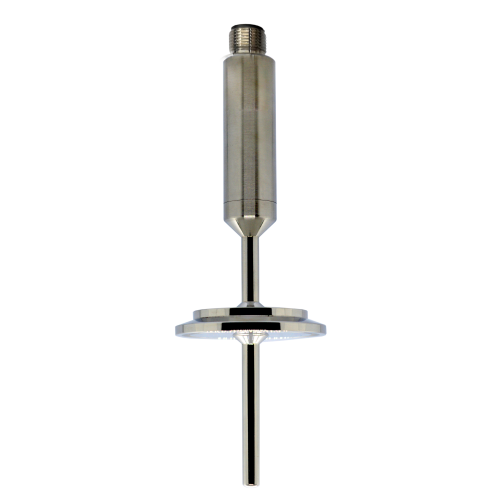

Compact RTD Sensors With Integral Transmitter
Model : RCP211
RCP211, Simplex, Pt100, 3-wire, Triclover with extension , Not Applicable, 3/4” (25.0 mm) , 6 mm (0.24") reduced to 4 mm (0.16"), Customer to specify , -50 to 160°C , Unit (°C or °F) , Not Applicable, Not Applicable, Not Applicable, Customer to specify , Customer To Specify, Not Applicable, Not Applicable
- -50 to 160°C (-58 to 320°F)
- Sheath material SS316L (1.14404)
- Surface finish Ra ≤ 0.4 μm for wetted parts, Ra ≤ 0.8 μm for non-wetted parts
- Class A to IEC 60751 accuracy
