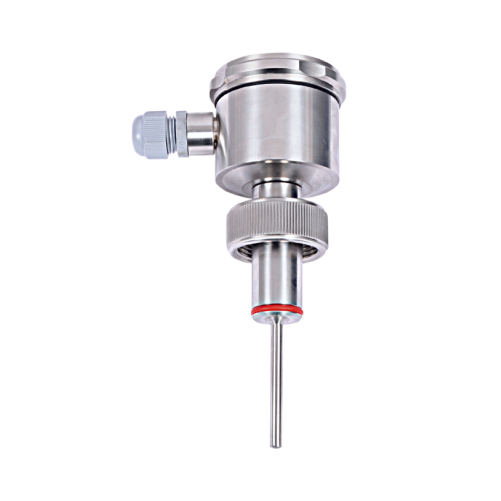

Temperature Sensor with Fermenter Connection
Model : RHF400
- Class A or higher accuracy
- Wetted parts made of SS316L
- Roughness value (Ra) ≤ 0.8 µm and ≤ 0.4 µm for non-wetted and wetted parts respectively
- SS304 terminal head and coupling nut
- EPDM sealing ring
- Operating pressure 10 bar
- Temperature range : Sensors tip -50 to 250°C (-58 to 482°F)
- Polyamide cable gland, M20x1.5 (M)
- Protection class, IP68 (NEMA 6P)
