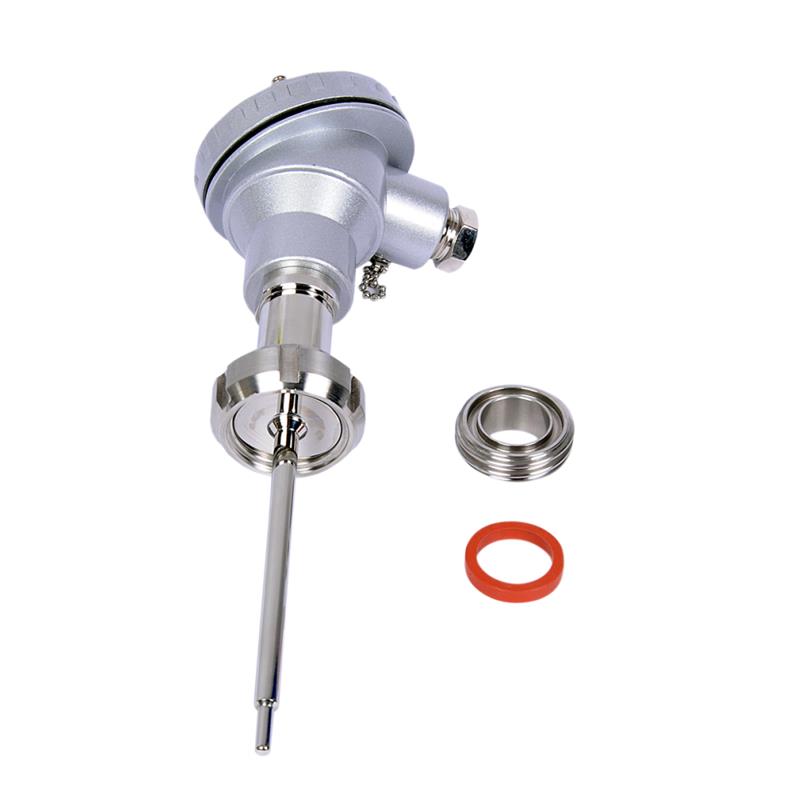

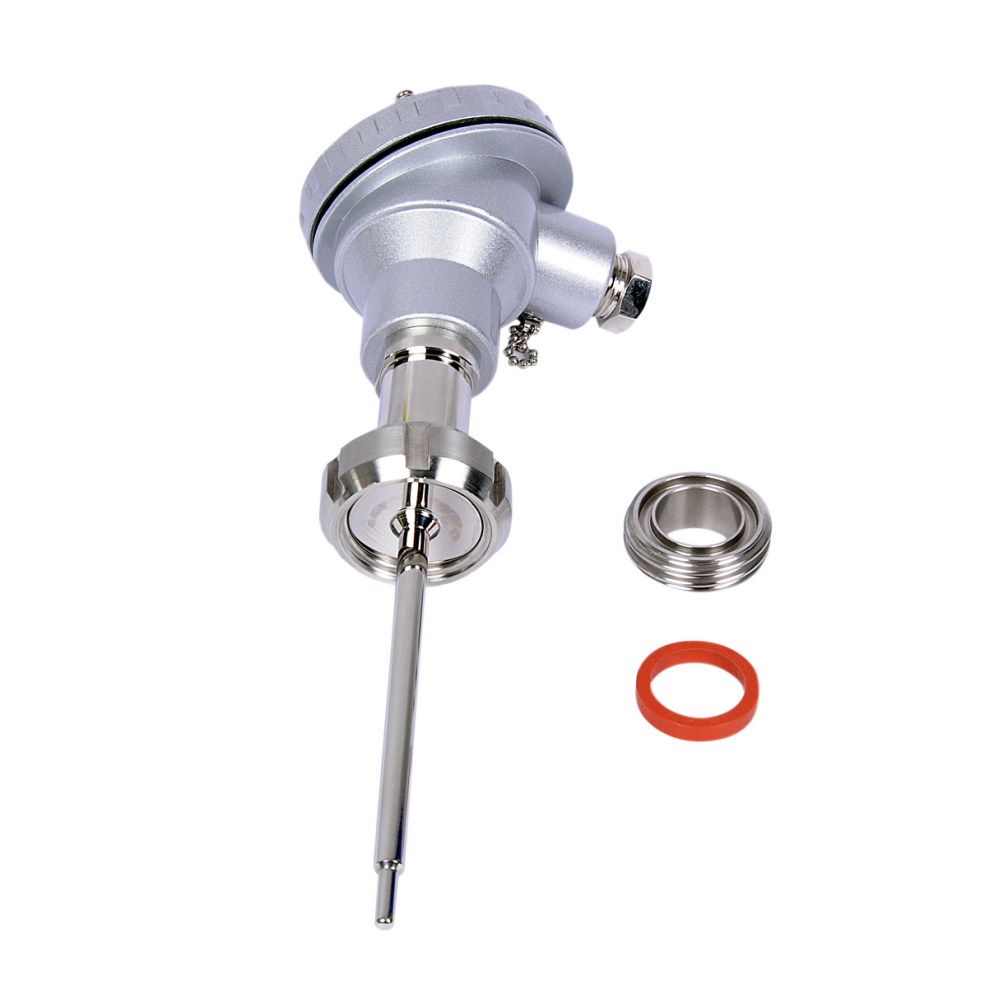

Sanitary RTD with SMS Connection
Model : RHS701
- Offered with sanitary SMS connection with or without male part and gasket
- Pressure range up to 40 bar
- SS316L material as standard for wetted parts
- Reduced tip design for quick response & to minimize flow restrictions
- Surface finishing Ra ≤ 0.6 μm as standard
- Degree of protection : IP68
Sanitary RTD with SMS Connection | RHS701 | Radix
