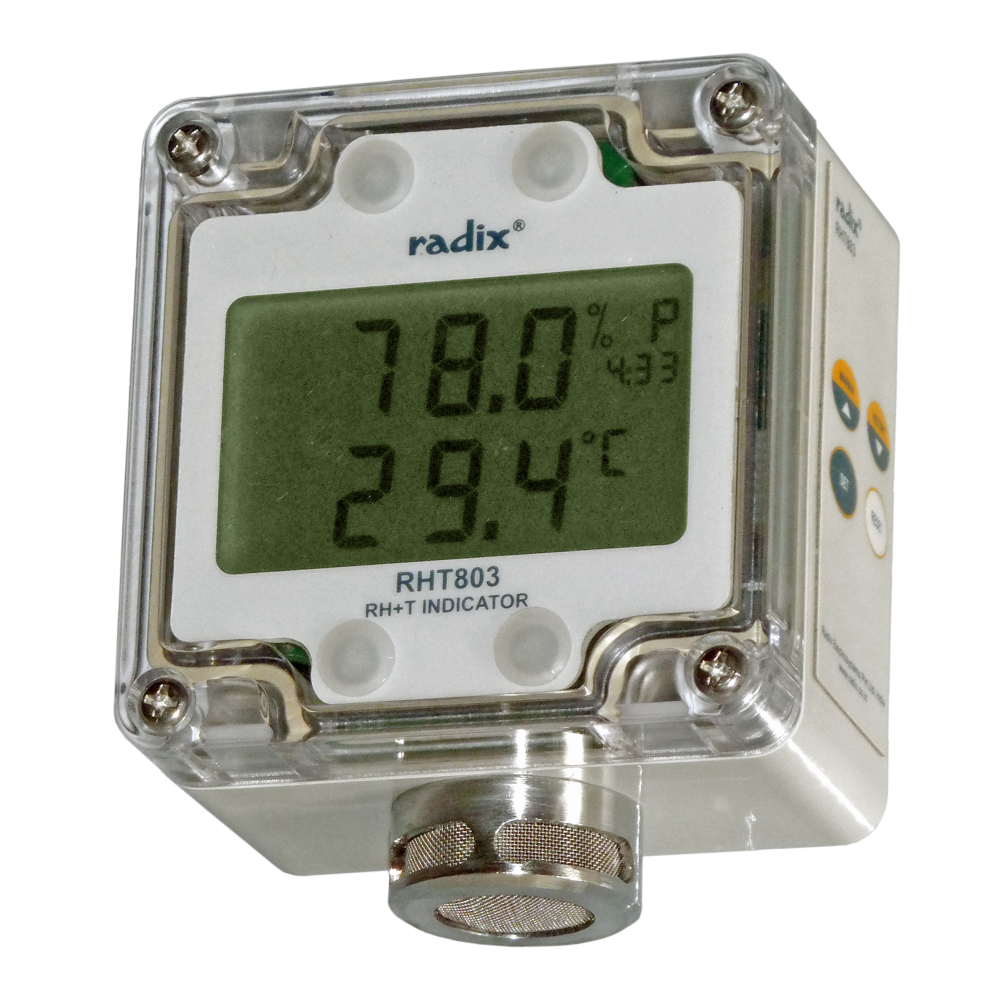

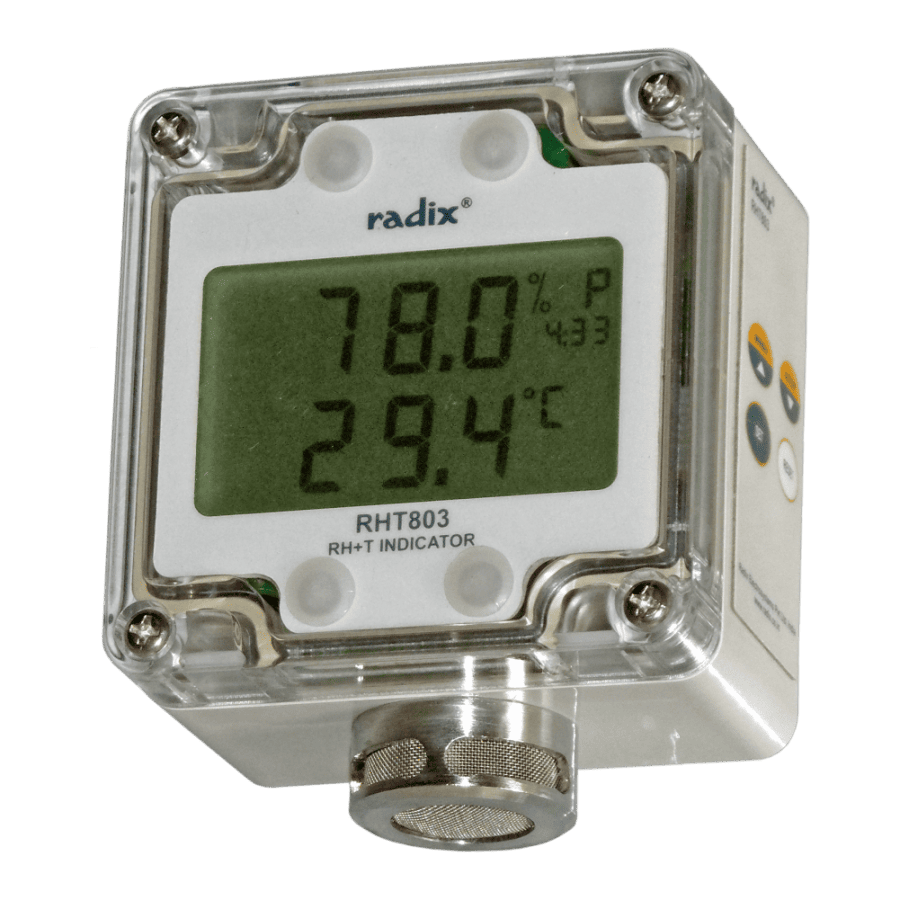

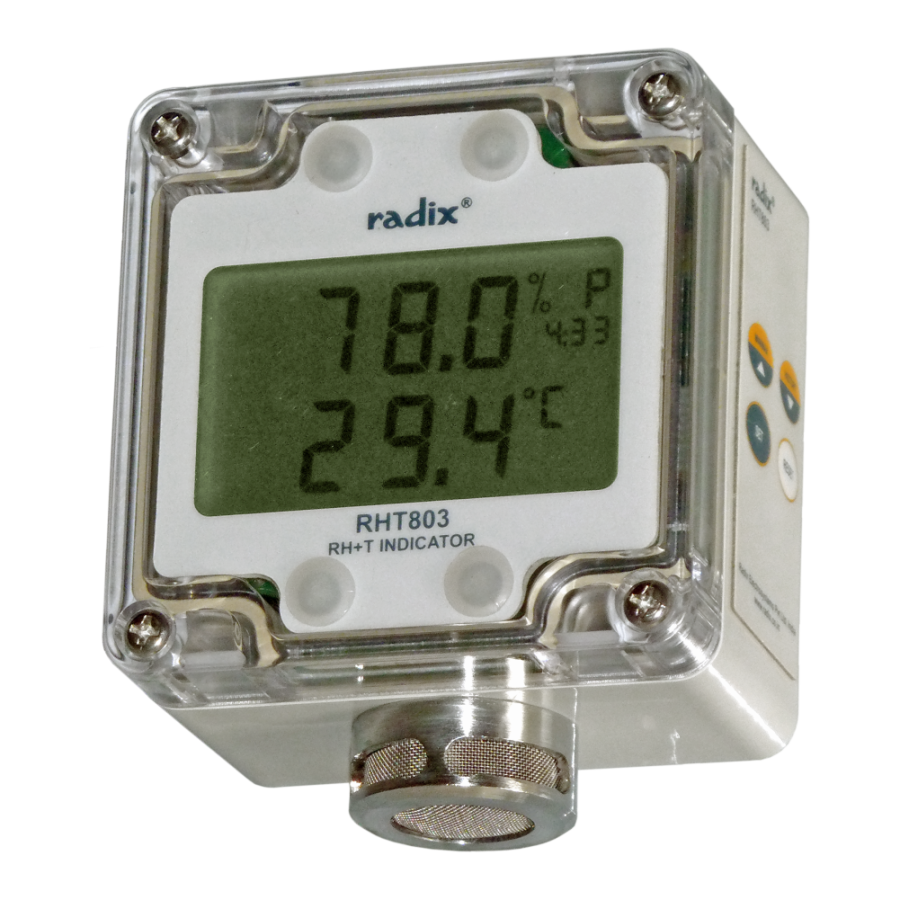

Relative Humidity / Temperature Indicator, Battery Operated
Model : RHT803
- Battery operated
- 1 year+ battery life (Duracell 9V, Alkaline)
- Accuracy : ±2% RH, ±0.5°C
- Software calibration - no trimpots
- IP65, rugged construction
- Dual 7-segment LCD display to show Relative Humidity & Temperature
- Programmable sampling interval, unit, bias, etc
- RTC display
- Remote sensor option with maximum cable length upto 25 meters
Humidity / Temperature Indicator, Battery Operated | RHT803 | Radix
Similar Products

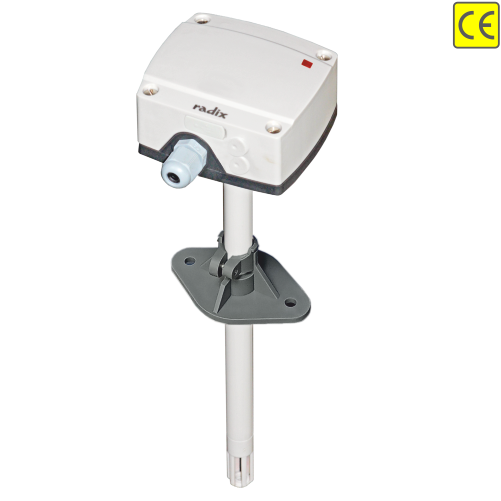

Humidity / Dewpoint / Temperature Transmitter, Wall & Duct |HTW201
- 2 x 2-wire, 4-20 mA or 0-10 VDC outputs
- Any output can be assigned to any parameter
- Configuration and calibration using PC with Radix converter DCC501
- Health/status LED
- Calculated parameters : Dewpoint, Absolute humidity, Heat index, Enthalpy
- Wall, Duct, Outside & Remote sensor versions
- Convenient installation with 2-part housing with fixed back and removable electronics
Relative Humidity / Dewpoint / Temperature Transmitter, Wall |HTE201
- 2 x 2-wire, 4-20 mA or 0-10 VDC outputs with RTD resistance output option
- Any or both outputs can be assigned to RH or T or Dewpoint or specific derived physical quantity
- Configuration and calibration using PC with Radix converter DCC501
- Health / status (Heartbeat) LED
- Calculated parameters : Dewpoint, Absolute humidity, Heat index, Enthalpy

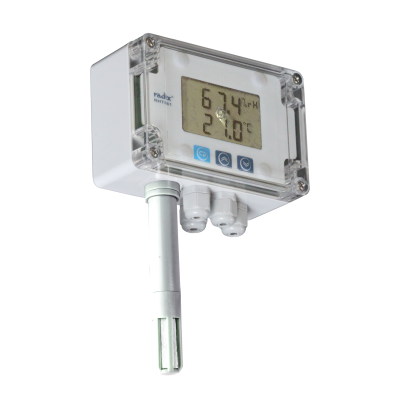

Dual Relative Humidity / Temperature 2-Wire Output Transmitter, Wall & Duct |RHT861
- 4 analog isolated outputs with true 2-wire operation, 2 RH, 2 T, 4 RH, 4 T
- Isolation : 1500 VAC RMS, 50 Hz/1 minute
- Precision Class A Pt100, Pt500, Pt1000 or band gap temperature sensor options
- Accuracy ±2% RH, ±0.5 deg C for band gap & ±0.2 deg C for RTD Class A sensor
- Any number of outputs (1-4) can be assigned to any parameter : RH, T or dew point
- Dual row 7 segment LCD option to display Relative Humidity, Temperature or Dew point (programmable)
- Parameter configuration via LCD & keys or remote display module or PC configurator using USB to Serial Converter DCC501
Air Quality Monitor, PM1/PM2.5/PM4.0/PM10/CO2/CO/ TVOC/RH-T/AQI, 3 Relays, RS485 Modbus |AQM201
- Laser scatter method sensor for Particulate Matter measurement
- MEMS metal oxide semiconductor sensor to detect poor Air Quality
- NDIR CO2 sensor technology for superior stability in occupied and non-occupied buildings
- Measurement : Particulate Matter, TVOC, RH/T, CO2, CO, Air Quality Index
- Isolated RS485 Modbus® RTU output
- Dual relay output, 250 VAC-5A
- Field Replaceable PM, CO2, CO, TVOC, RH/T sensor
- RH/T sensor also provides the parameters like : Dewpoint, Absolute humidity, Heat index, Enthalpy, Air density
Customers Also Viewed
RTD Temperature Transmitter |RTT201
- Dual 2-wire, 4-20 mA or dual 3-wire 0-10 VDC outputs
- Temperature range selection, parameter configuration and calibration with
- USB to serial converter (DCC501)
- Handheld configurator (HHC202) · Inbuilt LCD and 3 keys
- Health / status (Heartbeat) LED
- Isolated RS485 / MODBUS RTU or BACnet MS/TP
- High degree of protection against condensation & pollution
- Wall mount, duct mount & remote sensor option available
- 1/2" BSP adjustable compression fitting or triclover process connection option available
- Convenient installation with 2-part housing with fixed back and removable electronics
- Integral sensor (default) or remote sensor

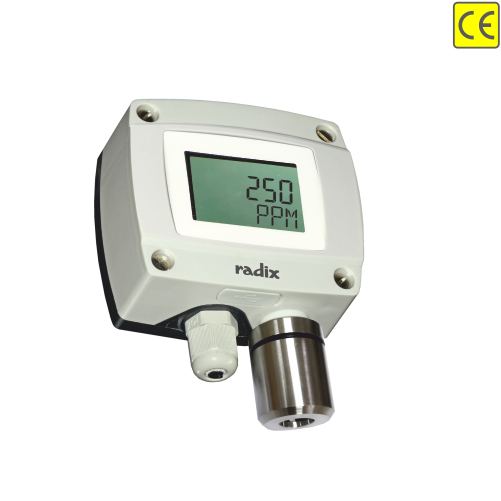

Carbon Monoxide Transmitter, Wall Mount |CMW201
- User configurable CO ranges upto 1000 ppm
- Optional 4-digit dual row LCD display to display carbon monoxide value in ppm
- Heartbeat LED for device health status
- DIP selectable Loop powered current output or voltage output
- Optional dual 4-20 mA output
- IP65 (≈NEMA 3SX) protection for enclosure
- Wall mount arrangement
- Internal switch provided to adjust zero ppm
- DIP for range selection

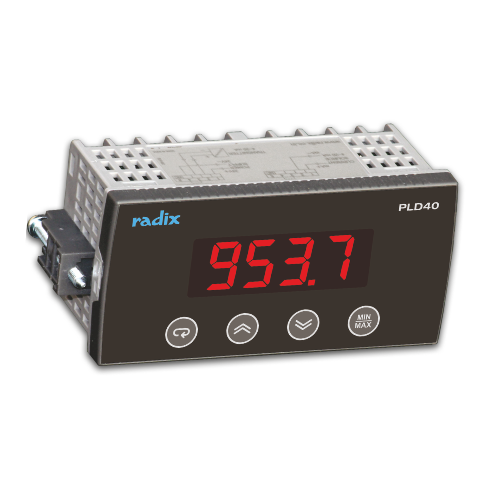

Loop Powered LED Indicator, Programmable |PLD40
- Excellent visibility in poor lighting conditions
- Provides process value indication in various industrial control & measurement applications such as pressure, flow, level, temperature, humidity.
- Can be used as remote indicator where power source is not available
Wireless Transmitters & IoT Edge Gateways With Datalogging |RRX201, RRX202, RTX201, RTX202, RFE201
- Supports up to 105 or 180 transmitters based on selected bandwidth
- Each IoT Edge Gateways (Receivers) supports 15 transmitters; system expandable with additional IoT Edge Gateways (Receivers)
- Battery-powered transmitters (factory settable)
- Ethernet IoT Edge Gateways (Receivers) with Modbus TCP & FTP OR MQTT protocol communication
- Automatic CSV data logging with storage up to 16 days
- Data buffering in both transmitters and IoT Edge Gateways (Receivers) to prevent data loss during communication failure
- Optional RF repeater for extended range and obstacle mitigation
