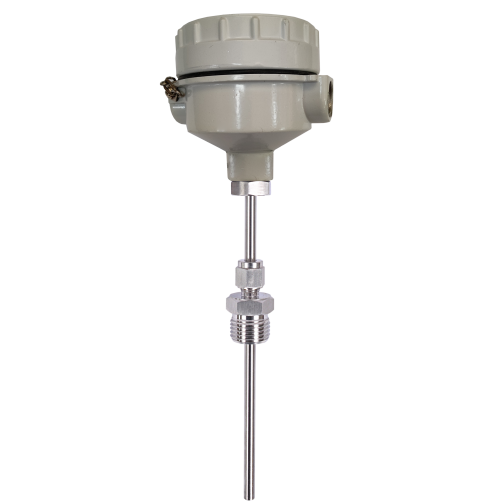

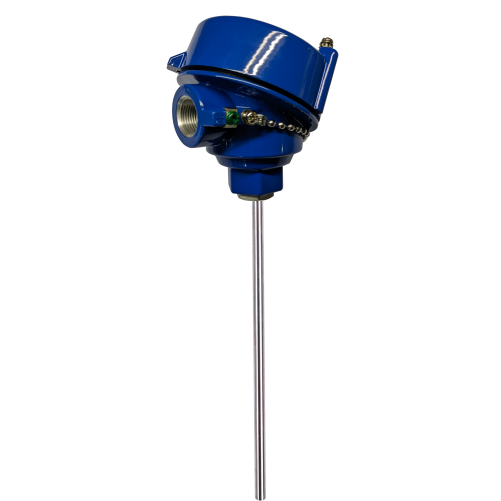

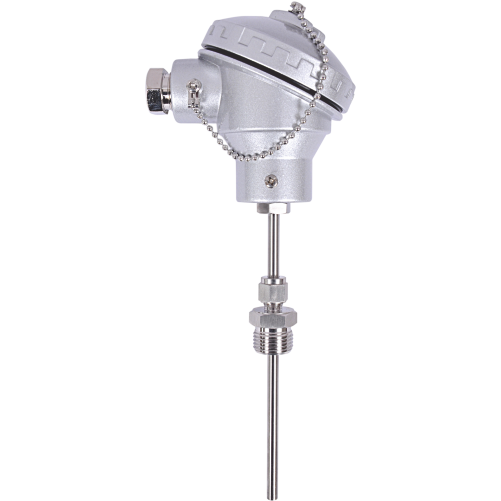

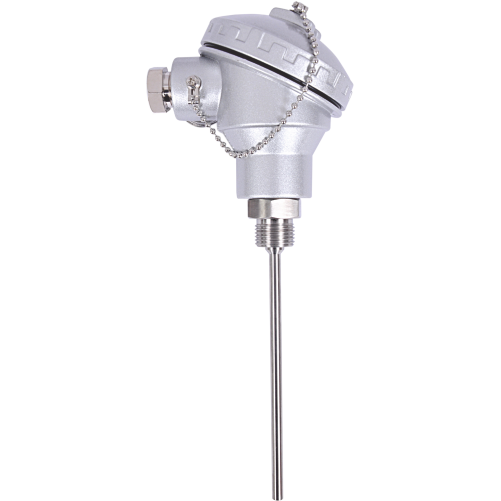

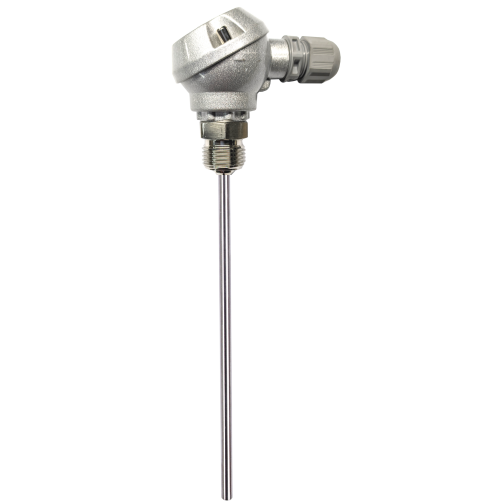

Industrial RTD with Protection Head
Model : RHW201
RHW201, Duplex, Flameproof, aluminium, threaded cap, Ex d, gas group IIB, IP67 (≈NEMA 6), T6, PESO, cable entry 2x1/2" NPT, Pt100, 3-wire, Class A, Adjustable compression fitting, SS304, 1/2" NPT, 6 mm (0.24"), 150 mm (5.90"), Cable gland, Blind plug, Terminal block, Not applicable, Not applicable, Not Applicalble, Not applicable, Not applicable, Not applicable
- -50 to 250°C (-58 to 482°F)
- Non-bendable sheath
- Class A or Class AA accuracy conforming to IEC 60751
- Standard lengths are 100, 150, 200 & 300mm (3.93, 5.90, 7.87, 11.81)"
- Weatherproof / Flameproof / ATEX aluminium head
- Adjustable or fixed threaded or flanged process connection
General Purpose RTDs
Temperature Sensors, RTDs, RTD Sensors
