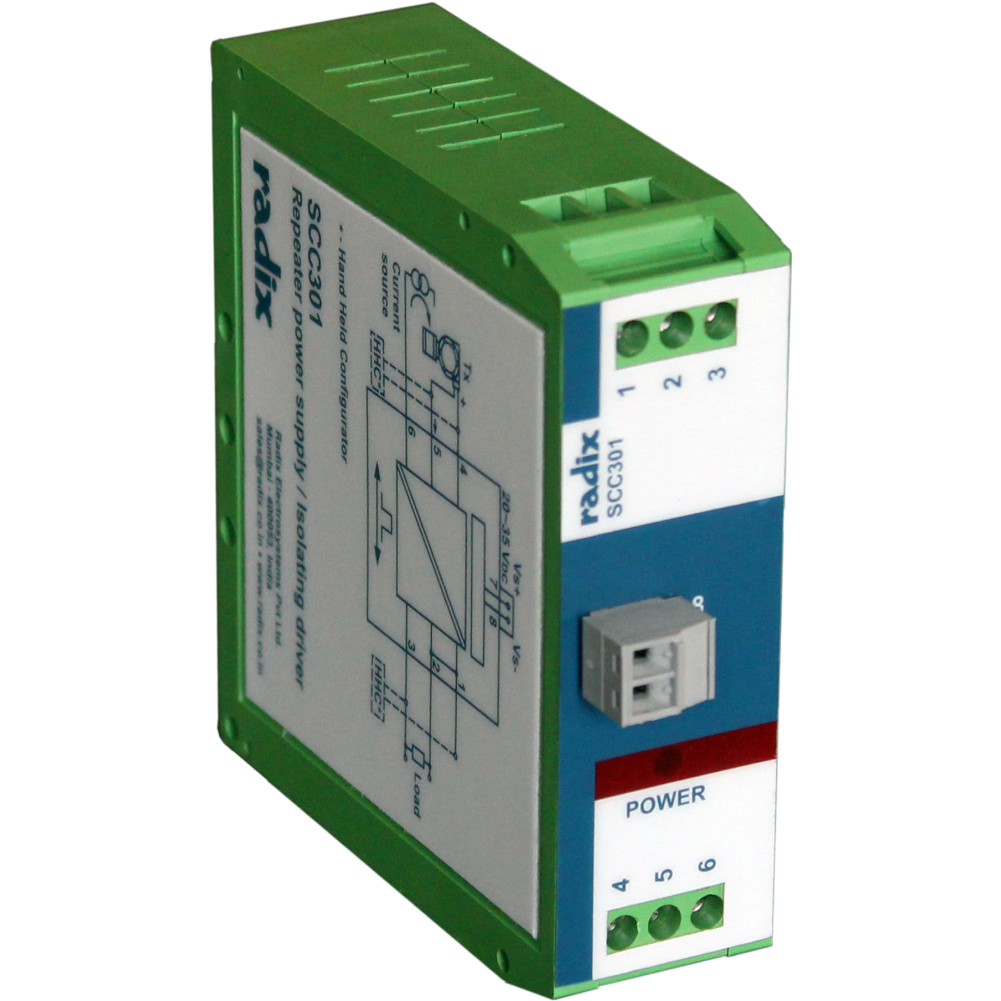

Signal Isolator - 0/4~20mA ISOLATOR
Model : SCC301
- 0/4~20 mA IN/OUT
- HART compatible
- 1500 V AC RMS galvanic isolation between supply, input & output
- Accuracy : ±0.1% of span (±20 mA)
- 750 ohms load resistance for Hart transparent / 550 ohms for non Hart model
- Excitation supply for 2-wire transmitter
- Din rail mount
- 20~35 V DC supply
- Output voltage limitation for non Hart model
