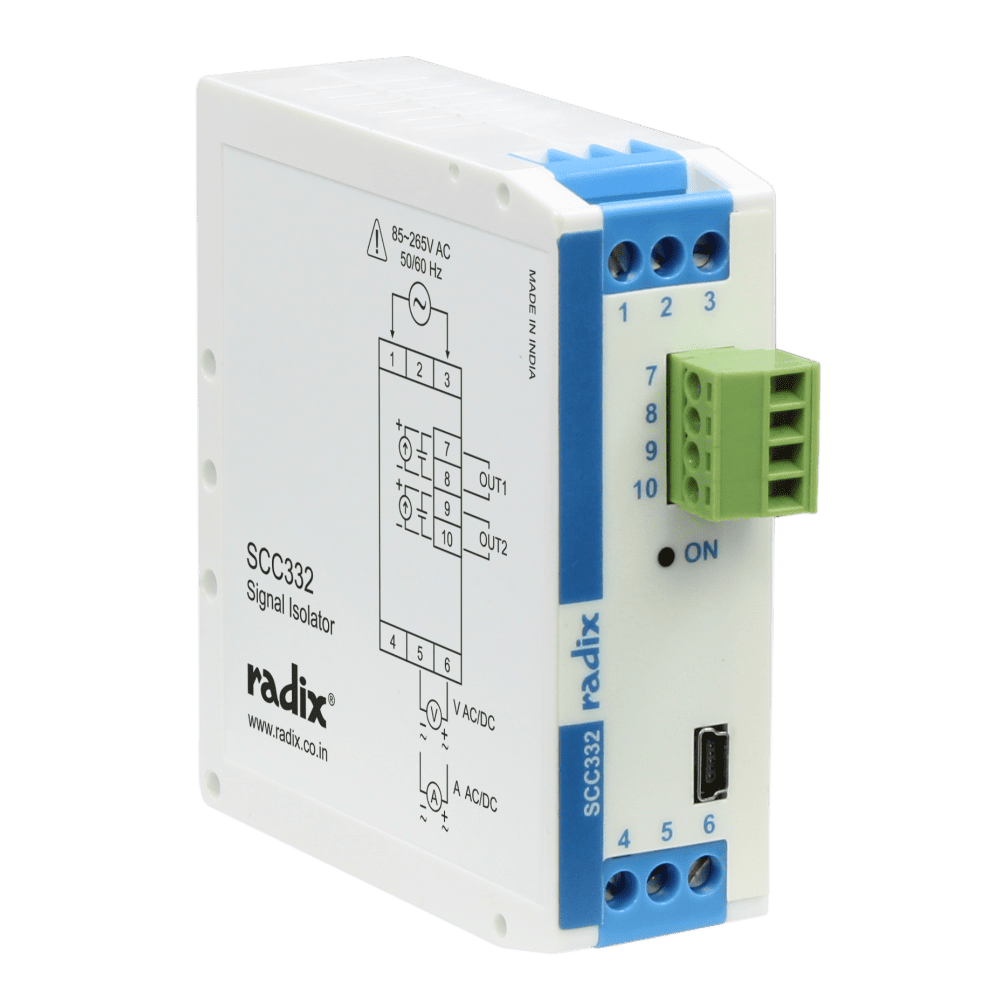

Signal Isolator - AC/DC Current/Voltage Input, Dual Output
Model : SCC332-AC
- Input : 0-5 AAC/DC or 0-500 VAC/DC
- Output : Dual 4-20 mA or 0-1/2/5/10 VDC output
- Isolation : 1500 VAC
- Supply : 18-42 VDC or 85-265 VAC
Signal Isolator - AC/DC Input, Dual Output | SCC332 | Radix
Similar Products
Signal Isolator - Temperature / Linear Input, Dual Output |SCC332
- Input : Temperature : Pt100, JPT, TC B, C, D, E, G, J, K, N, R, S, T, L, U, PLII, Cu53; Linear : 0-20 mA, 4-20 mA, 0-5V, 1-5V, 0-10V, 2-10V
- 2 x 0/4-20 mA or 0-1/2/5/10 VDC output
- Isolation 1500 VAC
- Supply : 18-42 VDC or 85-265 VAC
Signal Isolator - Universal input, Dual Output |SCC332-Universal
- Input : Universal : Pt100, JPT, TC B, C, D, E, G, J, K, N, R, S, T, L, U, PLII, Cu53, 0-20 mA, 4-20 mA, 0-5V, 1-5V, 0-10V, 2-10V
- Input type : Selectable through radix configurator
- Special configuration : Dual input (Input1 - Temperature, Input2 - Linear)
- Output : Dual 4-20 mA or 0-1/2/5/10 VDC output
- Isolation :1500 VAC
- Supply : 18-42 VDC or 85-265 VAC
