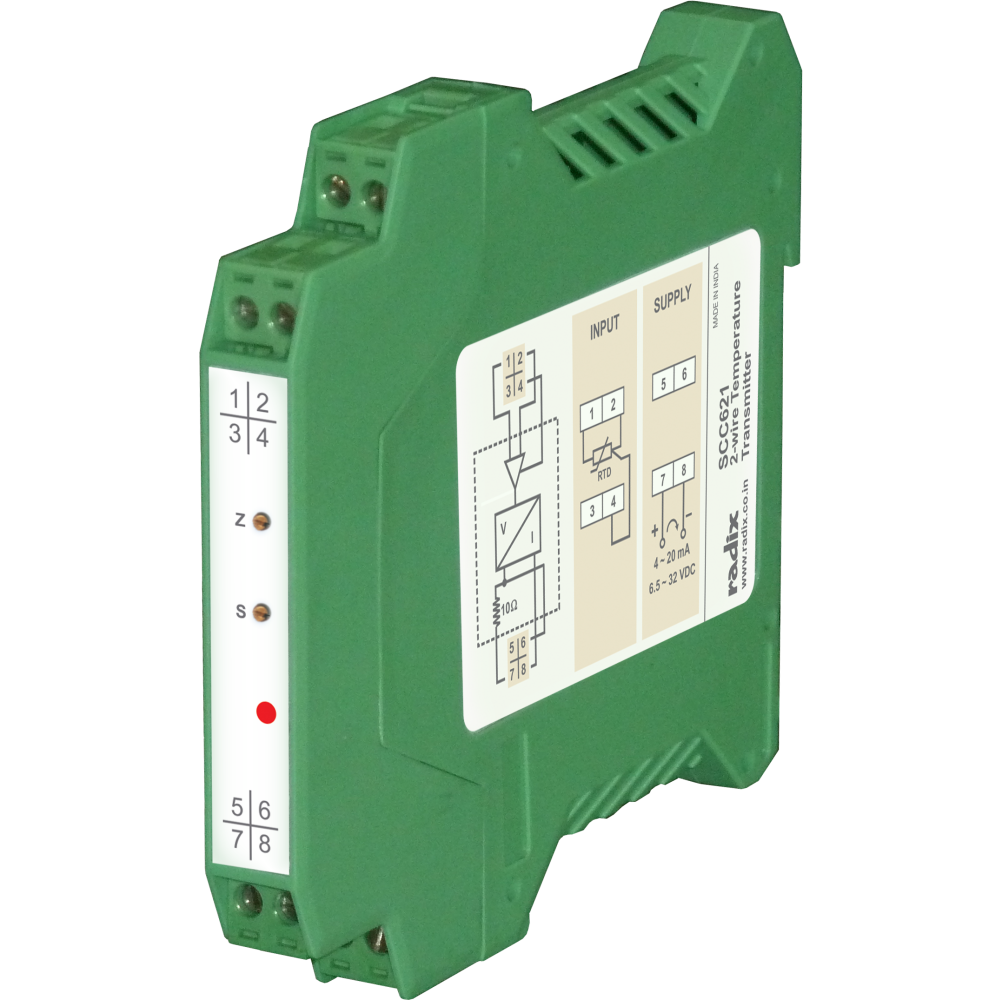

2-wire Temperature Transmitter, Non-isolated, Din-rail, RTD input
Model : SCC621
- 2-wire, 4-20mA output
- Pt100, Pt1000, Pt50, Pt200 or Pt500 inputs
- ±0.1% accuracy
- 8 overlapping input ranges in °C or °F
- Slim, 12.5mm wide Din-rail enclosure
