Side Mounting Level Switch
Magnetic Float Type
Model : SPS201
- Rugged construction
- Easy mounting with flanged connection
- Maintenance free
- Safe for high temperature, high pressure applications
- Enclosure weather proof IP66, Ex-Proof Fr. IIA, IIB & IIC
"level switch"
"side mounting level switch"

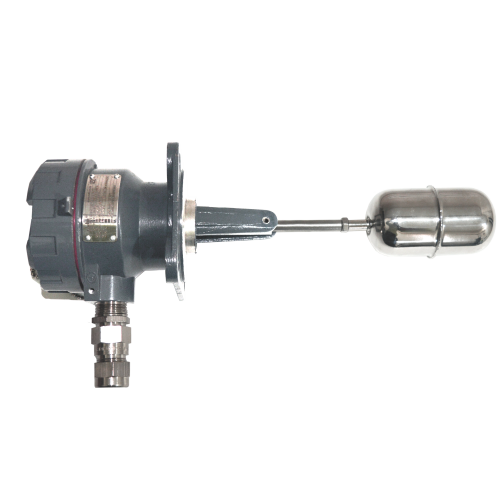

Side Mounting Level Switch - Model SPS201
It is most economical level switch where only on & off function is required. It consists of Enclosure, Float, Process Flange, Microswitch. Microswitch is fixed in non magnetic enclosure. Float rod carries magnet with it. Enclosure housed contact carriers also contains two magnets. Like poles of the two magnets comes opposite to each other when liquid level changes.
Repulsion force resulting from it carries out changeover of contact.
